QOU2605258 Schneider Electric Industrial Automation Components

QOU2605258 on Powermatic Associates
Schneider Electric

Part#:QOU2605258

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

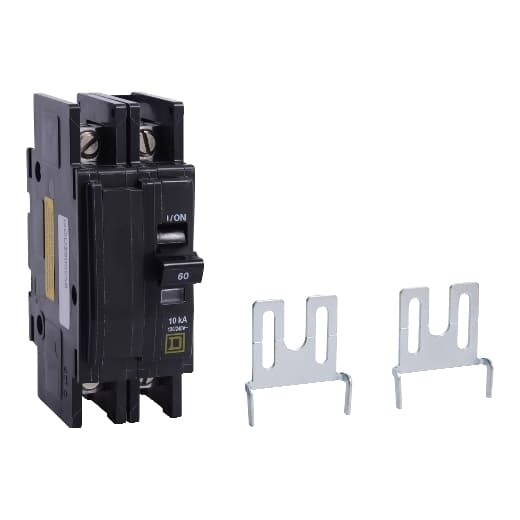

Square D by Schneider Electric QOU2605258 is a unit-mount Miniature Circuit Breaker (MCB) designed for a variety of applications. This two-pole MCB features a rated current of 60A and accommodates box lugs connections on the line side. It is compatible with a cross-section of 14-2AWG for one aluminum or copper cable. The QOU2605258 operates at a rated voltage of 120V to 240V AC and has a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. The terminals are also box lugs type, ensuring a secure connection for the line side.

Product Details

  • Height
    4.05 in (102.87 mm)
  • Mounting Mode
    Unit mount
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Depth
    2.95 in (74.93 mm)
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Product Or Component Type
    Miniature circuit-breaker
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Circuit Breaker Type
    Standard
  • Line Rated Current
    60 A
  • Width
    1.5 in (38.10 mm)
  • Range Of Product
    QOU
  • Electrical Connection
    box lugs, line side quick connect terminals, load side
  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU2605258 on Powermatic Associates is $105.00. Order now.
