QOUR1155283CCC Schneider Electric Industrial Automation Components

QOUR1155283CCC on Powermatic Associates
Schneider Electric

Part#:QOUR1155283CCC

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

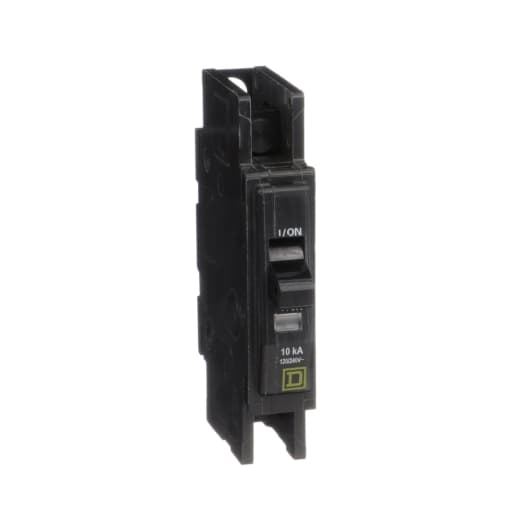

Square D by Schneider Electric QOUR1155283CCC is a Miniature Circuit Breaker (MCB) designed for unit mount installation. It features a rated current of 15A and utilizes ring tongue connections for both load and line sides. This MCB is compatible with a rated voltage of 48Vdc and 120V/240V AC. It is a single-pole device with a short circuit breaking rating of 10kA at 240Vac and 5kA at both 277Vac and 48Vdc. The terminals are of the ring tongue type.

Product Details

  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC
  • Electrical Connection
    ring tongue, line side ring tongue, load side
  • Width
    0.75 in (19.05 mm)
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Depth
    2.95 in (74.93 mm)
  • Height
    4.05 in (102.87 mm)
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Line Rated Current
    15 A
  • Mounting Mode
    Unit mount
  • Range Of Product
    QOU
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Circuit Breaker Type
    Standard
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOUR1155283CCC on Powermatic Associates is $67.00. Order now.
