QOUR2203100 Schneider Electric Industrial Automation Components

QOUR2203100 on Powermatic Associates
Schneider Electric

Part#:QOUR2203100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

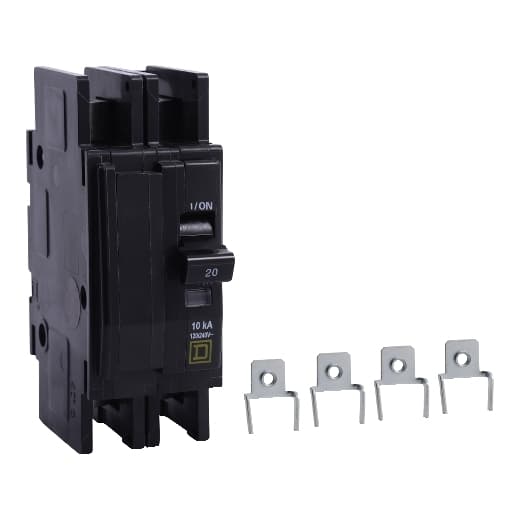

Square D by Schneider Electric QOUR2203100 is a miniature circuit breaker (MCB) designed for unit mount installation. It features a rated current of 20A and accommodates slotted box lugs connections on both the load and line side. This MCB is compatible with a cross-section of 14-2AWG for one aluminum or copper cable and is equipped with two poles. It has a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. The rated voltage for AC operation is 120V to 240V, and for DC operation, it is 48Vdc. The terminals are of the box lugs type.

Product Details

  • Range Of Product
    QOU
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Line Rated Current
    20 A
  • Mounting Mode
    Unit mount
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Width
    1.5 in (38.10 mm)
  • Circuit Breaker Type
    Standard
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Product Or Component Type
    Miniature circuit-breaker
  • Depth
    2.95 in (74.93 mm)
  • Height
    4.05 in (102.87 mm)
  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side
  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOUR2203100 on Powermatic Associates is $105.00. Order now.
