Product description

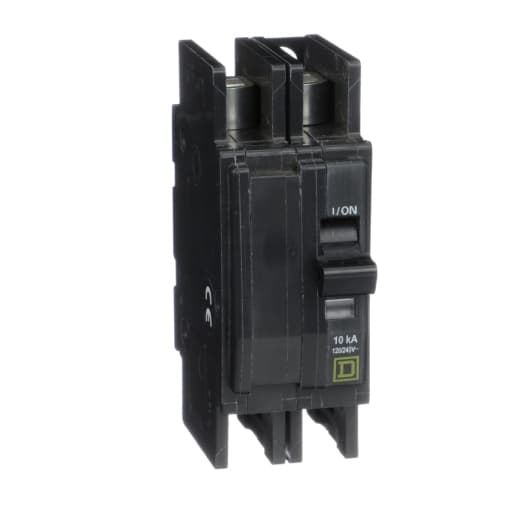

Schneider Electric - QOUR3505283

Product Details

  • [Ue] Rated Operational Voltage
    120/240 V AC 240 V AC 120 V AC 48 V DC
  • Electrical Connection
    ring tongue, line side ring tongue, load side
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Width
    2.25 in (57.15 mm)
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Mounting Mode
    Unit mount
  • Depth
    2.95 in (74.93 mm)
  • Height
    4.05 in (102.87 mm)
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Line Rated Current
    50 A
  • Range Of Product
    QOU
  • Circuit Breaker Type
    Standard
  • Product Or Component Type
    Miniature circuit-breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOUR3505283 on Powermatic Associates is $423.00. Order now.

QOUR3505283 Related Documents

Instruction Sheet-1631030960669.pdfProduct Datasheet-1631030960689.pdf

Similar products from: Schneider Electric Industrial Automation Components

LC1D95M7 on Powermatic Associates

LC1D95M7

Schneider Electric

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

17 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F43303 on Powermatic Associates

M9F43303

Schneider Electric

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

5 in stock
VW3A9921 on Powermatic Associates

VW3A9921

Schneider Electric

Schneider Electric VW3A9921 is an adapter designed for direct circuit breaker mounting. This mechanical adapter kit facilitates the integration of components by providing a compatible interface for secure and straightforward installation.

12 in stock
M9F53220 on Powermatic Associates

M9F53220

Schneider Electric

Schneider Electric M9F53220 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 20A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The M9F53220 offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and has 2 protected poles. The tripping curve for this MCB is classified as D.

1 in stock

Manufacturer warranty

QOUR3505283 Schneider Electric

$423.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$423.00

$423.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QOUR3505283 with other Industrial Automation Components products

[Ue] Rated Operational Vo...

Electrical Connection

AWG Gauge

Width

Tightening Torque

Mounting Mode

Depth

Height

Circuit Breaker Applicati...

Line Rated Current

Selected product

QOUR3505283
Backordered
QOUR3505283
Schneider Electric

Schneider Electric - QOUR3505283

[Ue] Rated Operational Voltage120/240 V AC 240 V AC 120 V ...

Electrical Connectionring tongue, line side ring...

AWG GaugeAWG 14...AWG 2 aluminium/cop...

Width2.25 in (57.15 mm)

Tightening Torque45 lbf.in (5.08 N.m) (AWG 14...

Mounting ModeUnit mount

Depth2.95 in (74.93 mm)

Height4.05 in (102.87 mm)

Circuit Breaker ApplicationHACR and Switching Duty rate...

Line Rated Current50 A

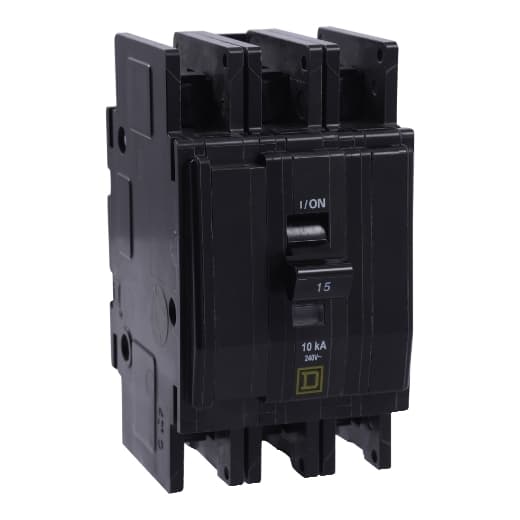

QOU3155283
8 in stock
QOU3155283
Schneider Electric

Square D by Schneider Electric QOU3155283 is a unit-mount Miniature Circuit Breaker (MCB) designed f...

[Ue] Rated Operational Voltage120/240 V AC 240 V AC 120 V ...

Electrical Connectionring tongue, line side ring...

AWG Gauge-

Width2.25 in (57.15 mm)

Tightening Torque45 lbf.in (5.08 N.m) (AWG 14...

Mounting ModeUnit mount

Depth2.95 in (74.93 mm)

Height4.05 in (102.87 mm)

Circuit Breaker ApplicationHACR and Switching Duty rate...

Line Rated Current15 A

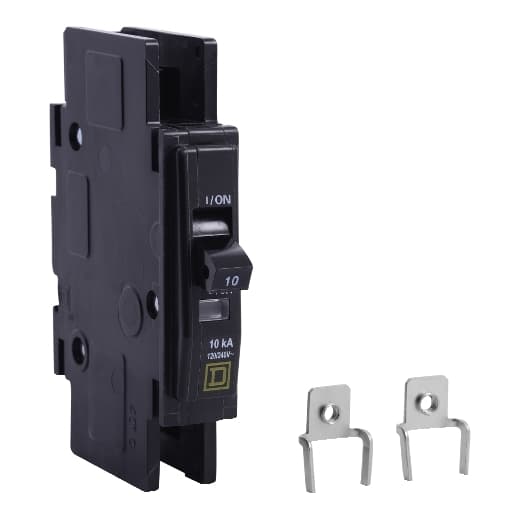

QOU3105283
