RC3040M200SLS Schneider Electric Electronic Components

RC3040M200SLS on Powermatic Associates
Schneider Electric

Part#:RC3040M200SLS

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

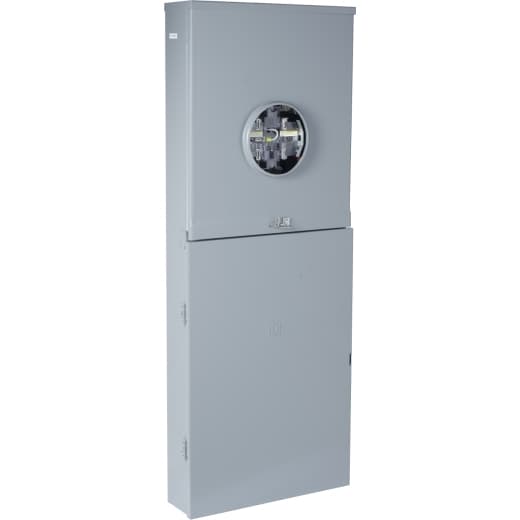

Square D by Schneider Electric RC3040M200SLS is a Combination Service Entrance Device (CSED) designed for surface mounting. This all-in-one CSED features a ringless socket with a lever bypass and is rated for a current of 200A. It offers connections via lugs for both ground and line, accommodating 6AWG to 350kcmil aluminium/copper lugs for line connections and 8AWG to 2/0AWG aluminium/copper lugs for ground connections. The device provides 30 spaces for up to 40 single pole circuits and 10 tandem breakers, ensuring ample capacity for various electrical circuit configurations. It has a short circuit breaking rating of 22kA, indicating its capability to interrupt fault currents up to 22,000 amperes.

Product Details

  • Meter Socket Type
    Ringless
  • Product Or Component Type
    All-In-One
  • Number Of Circuits
    40
  • Bypass Type
    Lever bypass
  • Short-Circuit Current
    22 kA
  • Hub Type
    A
  • Number Of Tandem Breakers
    10
  • Depth
    6.05 in (153.67 mm)
  • Line Rated Current
    200 A
  • Mounting
    Surface
  • Disconnect
    Service disconnect (factory installed)
  • Width
    18.35 in (466.09 mm)
  • Range Of Product
    QO
  • Branch Breaker Rating
    200 A
  • Number Of Spaces
    30
  • Disconnect Rating
    200 A
  • Height
    48.62 in (1234.95 mm)
  • Wire Size
    AWG 6...350 kcmil aluminium/copper)line side AWG 8...AWG 2/0 aluminium/copper)service ground
  • Electrical Connection
    Lugs line side Lugs service ground
  • Service Feed Location
    UG OH outdoor
  • Tightening Torque
    Main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper Service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper Service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper Service ground 40 lb.in, AWG 8, aluminium/copper Branch lugs 3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RC3040M200SLS Related Documents

Instruction Sheet-1631030952575.pdfCatalog-1631030952577.pdfProduct Datasheet-1631030952579.pdf
