Product description

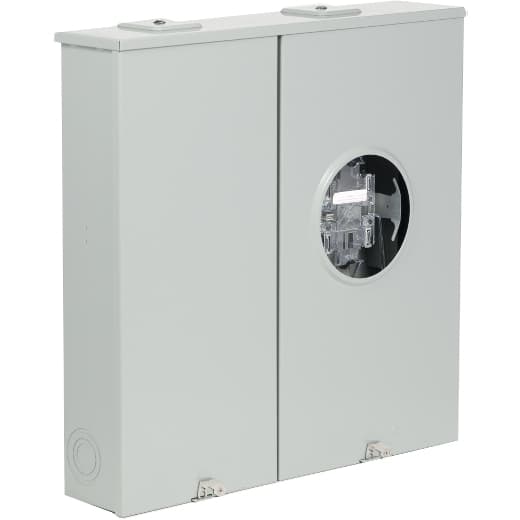

Square D by Schneider Electric RCM200SL is a Combination Service Entrance Device (CSED) designed for surface mounting. It features a ringless meter socket with a lever bypass, facilitating metering main functions. The device is rated for a current of 200A and includes lugs for both ground and line connections. Its dimensions are H610mm x W611mm x D125mm (H24" x W24.04" x D4.94").

Product Details

  • Product Or Component Type
    Meter Mains
  • Disconnect
    Service disconnect (ordered separately)
  • Number Of Spaces
    0
  • Number Of Circuits
    0
  • Depth
    4.94 in (125.48 mm)
  • Mounting
    Surface
  • Main Breaker Rating
    200 A
  • Meter Socket Type
    Ringless
  • Short-Circuit Current
    10 kA
  • Width
    24.44 in (620.78 mm)
  • Network Number Of Phases
    1
  • Number Of Tandem Breakers
    0
  • Line Rated Current
    200 A
  • Height
    24.00 in (609.60 mm)
  • Hub Type
    A
  • Range Of Product
    Homeline
  • Bypass Type
    Class 320 lever bypass
  • Service Feed Location
    OH UG
  • Electrical Connection
    Lugs line side Lugs service ground
  • Wire Size
    AWG 8...AWG 1/0 aluminium/copper)service ground AWG 6...350 kcmil aluminium/copper)line side

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RCM200SL on Powermatic Associates is $1,950.00. Order now.

RCM200SL Related Documents

Catalog-1631030656314.pdfInstruction Sheet-1631030656325.pdfProduct Datasheet-1631030656316.pdf
