Part#:RE22R2DMR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

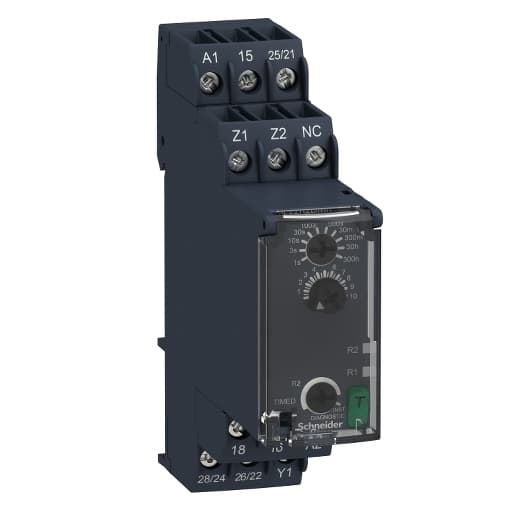

Schneider Electric RE22R2DMR is an analog timer featuring modular design with an 18mm width equivalent to 1 module. It offers dual function timing capabilities including Symmetrical flashing relay (starting pulse-off) with options for retrigger/restart via control signals. Control is facilitated through a rotary knob, a diagnostic button, and an external potentiometer. The control signal pulse widths are specified at 100ms with load in parallel and 30ms, with a recovery time of 120ms upon de-energization and a power-on delay of 100ms. Designed for DIN rail mounting, this timer has a rated current of 8 A and falls under the RE22 sub-range. It provides a degree of protection rated at IP40 for the housing, IP20 for terminals, and IP50 for the front panel. The housing material is self-extinguishing, ensuring durability. Power consumption is rated at 1.5 W at 240Vdc. The RE22R2DMR features DPDT (Double Pole Double Throw) contacts, supporting 2C/O operations, and can handle a rated impulse voltage (Uimp) of 5 kV. It operates on a supply voltage range of 24-240 V AC/DC, with a minimum threshold of 20.4 V. The display includes a green LED backlight for dial pointer indication, alongside yellow LEDs to signal various operational statuses. Its electrical durability is rated for 100,000 operations at 250vac/24Vdc and up to 10,000,000 operations. The timer offers a wide time delay range from 1 second to 300 hours (1 to 1,080,000 seconds), and operates within a temperature range of -20°C to +60°C.

Product Details

  • Range Of Product
    Harmony Timer Relays
  • Temperature Drift
    +/- 0.05 %/°C
  • Power Consumption In VA
    3 VA 240 V AC
  • Device Short Name
    RE22
  • Housing Material
    Self-extinguishing
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Maximum Switching Voltage
    250 V AC
  • Power Consumption In W
    1.5 W 240 V DC
  • Power On Delay
    100 ms
  • Discrete Output Type
    Relay
  • Voltage Range
    0.85...1.1 Us
  • Time Delay Type
    Symmetrical flashing
  • [Us] Rated Supply Voltage
    24...240 V AC/DC 50/60 Hz
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Mechanical Durability
    10000000 cycles
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Switching Capacity In VA
    2000 VA
  • Product Or Component Type
    Dual function relay
  • Release Input Voltage
    <= 2.4 V
  • Recovery Time
    120 ms on de-energisation
  • Net Weight
    0.23 lb(US) (0.105 kg)
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Immunity To Microbreaks
    10 ms
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Minimum Switching Current
    10 mA 5 V DC
  • Overvoltage Category
    III IEC 60664-1
  • Nominal Output Current
    8 A
  • Voltage Drift
    +/- 0.2 %/V
  • Maximum Switching Current
    8 A
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Width
    0.89 in (22.5 mm)
  • Mounting Position
    Any position
  • Control Signal Pulse Width
    100 ms with load in parallel 30 ms
  • Contacts Type And Composition
    1 C/O timed contact, cadmium free 1 C/O timed or instantaneous contact, cadmium free
  • Safety Reliability Data
    B10d = 200000 MTTFd = 216.8 years
  • Electrical Durability
    100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1
  • Control Type
    Rotary knob Diagnostic button Potentiometer external
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Status LED
    Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised
  • Time Delay Range
    1...10 s 30...300 min 3...30 s 10...100 s 30...300 h 30...300 s 3...30 min 0.3...3 s 0.05...1 s 3...30 h

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
