Part#:RE22R2MMU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

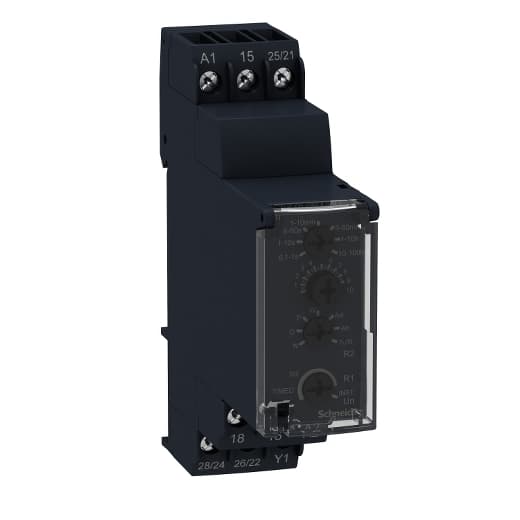

Schneider Electric RE22R2MMU is an analog, modular multi-function timer designed for DIN rail mounting. It features a variety of functions including A, Ac, At, B, Bw, C, D, Di, H, and Ht, which are controlled via a front panel rotary knob. The timer offers a control signal pulse width of 100ms under load and 30ms, with a recovery time of 120ms on de-energisation and a power-on delay of 100ms. It has a rated current of 8 A and falls under the RE22 sub-range. The degree of protection is IP40 for both the front face and housing, with the terminal block rated at IP20. The housing material is self-extinguishing, and the power consumption at 24Vdc is 0.7 W. It features DPDT (Double Pole Double Throw) - 2C/O contacts, with a rated impulse voltage (Uimp) of 5 kV. The supply voltage ranges from 24-240 V AC and 24 V DC, with a minimum of 20.4 V. Display indicators include a green LED for timing in progress and power ON, and a yellow LED for relay energisation. Its electrical durability is rated at 100,000 operations for 250Vac resistive load and 10,000,000 operations. The time delay range is 0.1s to 100h or 0.1 to 360,000 seconds. It operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    10...100 h 6...60 s 0.1...1 s 1...10 h 1...10 s 1...10 min 6...60 min
  • Time Delay Type
    Power on-delay On-delay and off-delay Interval Off-delay Symmetrical flashing
  • Status LED
    Green LED flashing)timing in progress Green LED steady)power ON Yellow LEDrelay energised
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1 5 kV IEC 61812-1
  • [Us] Rated Supply Voltage
    24...240 V AC 24 V DC
  • Safety Reliability Data
    MTTFd = 182.6 years B10d = 170000
  • Connections - Terminals
    Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end
  • Control Signal Pulse Width
    30 ms 100 ms under load
  • Contacts Type And Composition
    1 C/O timed contact 1 C/O timed or instantaneous contact
  • Width
    0.89 in (22.5 mm)
  • Net Weight
    0.20 lb(US) (0.09 kg)
  • Electrical Durability
    100000 cycles for resistive load, 8 A at 250 V, AC
  • Mechanical Durability
    10000000 cycles
  • Power On Delay
    100 ms
  • Minimum Switching Current
    10 mA 5 V
  • Immunity To Microbreaks
    10 ms
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Maximum Switching Current
    8 mA
  • Maximum Switching Voltage
    250 V
  • Breaking Capacity
    2000 VA
  • Power Consumption In W
    0.7 W 24 V DC
  • Power Consumption In VA
    50 VA 240 V AC
  • Recovery Time
    120 ms on de-energisation
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Voltage Drift
    +/- 0.2 %/V
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Housing Material
    Self-extinguishing
  • Temperature Drift
    +/- 0.05 %/°C
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Voltage Range
    0.85...1.1 Us
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Control Type
    Rotary knob front panel
  • Nominal Output Current
    8 A
  • Discrete Output Type
    Relay
  • Product Or Component Type
    Multifunction relay
  • Range Of Product
    Harmony Timer Relays
  • Device Short Name
    RE22

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
