RE22R2QEMR Schneider Electric Industrial Automation Components

RE22R2QEMR on Powermatic Associates
Schneider Electric

Part#:RE22R2QEMR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

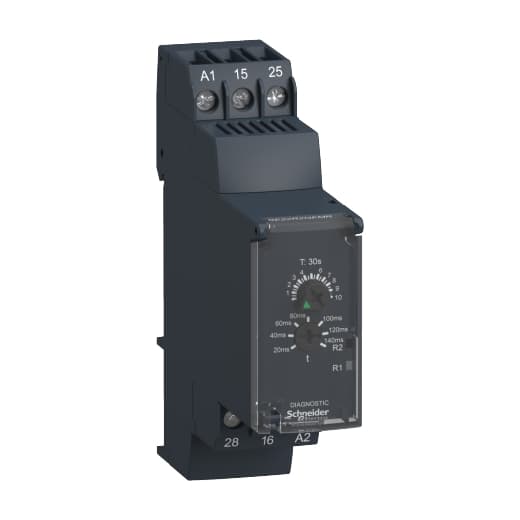

Schneider Electric RE22R2QEMR is an analog timer featuring a modular design of 18mm / 1 module with a single function timer, specifically a Star-delta timer (1 NC + 1 NO outputs with split common). It is equipped with a rotary knob and a diagnostic button for control, offering a recovery time of 120ms on de-energisation and a power-on delay of 100ms. This timer is designed for DIN rail mounting and has a rated current of 8 A. It falls under the RE22 sub-range and offers a degree of protection of IP40 for the housing, IP20 for the terminals, and IP50 for the front panel. The housing material is self-extinguishing, and the power consumption at 240Vdc is 1.5 W. It features DPDT (Double Pole Double Throw) - 2C/O contacts type, with a rated impulse voltage (Uimp) of 5 kV. The supply voltage ranges from 24-240 V AC/DC, with a minimum of 20.4 V. The display includes a green LED backlight for dial pointer indication, and yellow LEDs for various status indications including output relay energised, timing in progress, and output relay de-energised. Its electrical durability with load is rated at 100,000 operations at 250vac/24Vdc and 10,000,000 operations. The time delay range is 1s - 300h / 1 - 1,080,000 s, and it can operate within a temperature range of -20°C to +60°C.

Product Details

  • Discrete Output Type
    Relay
  • Housing Material
    Self-extinguishing
  • Power Consumption In VA
    3 VA 240 V AC
  • Device Short Name
    RE22
  • [Us] Rated Supply Voltage
    24...240 V AC/DC 50/60 Hz
  • Voltage Drift
    +/- 0.2 %/V
  • Maximum Switching Current
    8 A
  • Mounting Position
    Any position
  • Release Input Voltage
    <= 2.4 V
  • Recovery Time
    120 ms on de-energisation
  • Mechanical Durability
    10000000 cycles
  • Width
    0.89 in (22.5 mm)
  • Product Or Component Type
    Single function relay
  • Immunity To Microbreaks
    10 ms
  • Power On Delay
    100 ms
  • Range Of Product
    Harmony Timer Relays
  • Voltage Range
    0.85...1.1 Us
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Maximum Switching Voltage
    250 V AC
  • Contacts Type And Composition
    2 C/O timed contact, cadmium free
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Time Delay Type
    Star-delta
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Minimum Switching Current
    10 mA 5 V DC
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Nominal Output Current
    8 A
  • Time Delay Range
    0.3...30 s
  • Temperature Drift
    +/- 0.05 %/°C
  • Switching Capacity In VA
    2000 VA
  • Overvoltage Category
    III IEC 60664-1
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Power Consumption In W
    1.5 W 240 V DC
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1
  • Net Weight
    0.20 lb(US) (0.09 kg)
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Control Type
    Rotary knob Diagnostic button
  • Safety Reliability Data
    B10d = 320000 MTTFd = 353.8 years
  • Electrical Durability
    100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Status LED
    Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE22R2QEMR on Powermatic Associates is $54.44. Order now.

RE22R2QEMR Related Documents
