RJF36160CU33A Schneider Electric Industrial Automation Components

RJF36160CU33A on Powermatic Associates
Schneider Electric

Part#:RJF36160CU33A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

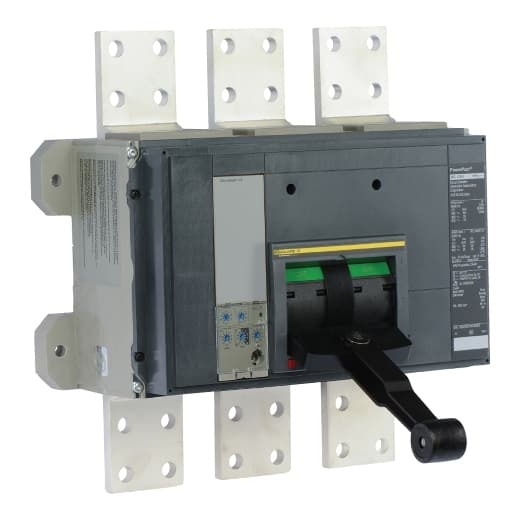

Square D by Schneider Electric RJF36160CU33A is a Moulded Case Circuit Breaker (MCCB) within the PowerPact RJF sub-range. This MCCB features a connection type of busbar and is designed with 3 poles. It offers protection functions including L (Long-time protection), S (Short-time protection with fixed time delay), and I (Instantaneous protection). The rated current for this device is 1600A, with a rated voltage (AC) of 600 V. It is designed for mounting plate installation. The trip current rating is set at 1600 AT, and it has a frame current rating of 3000 AF. The short circuit breaking rating is specified as 100kA at 240Vac, 65kA at 480Y/277Vac and 480Vac, and 25kA at 600Y/347Vac and 600Vac. All three poles are protected, and it utilizes a Micrologic 5.0 (LSI) Electronic trip unit type.

Product Details

  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Height
    16.24 in (412.50 mm)
  • Continuous Current Rating
    100 %
  • Breaking Capacity Code
    J
  • Width
    16.53 in (419.86 mm)
  • Depth
    14.49 in (368.05 mm)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RJF36160CU33A on Powermatic Associates is $31,752.00. Order now.

RJF36160CU33A Related Documents

Instruction Sheet-1631034592634.pdfProduct Datasheet-1631034592628.pdfCatalog-1631034592626.pdf
