Part#:RJF36160U41A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

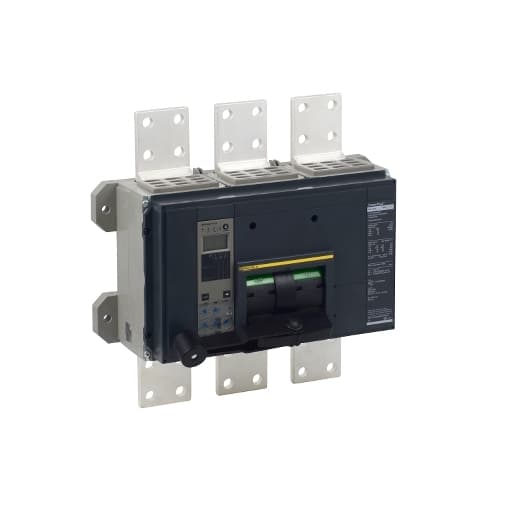

POWERPACT R-FRAME, MOLDED CASE CIRCUIT BREAKER, 600V, 1600A, 3P, 25kA

Product Details

  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    J
  • Number Of Poles
    3P
  • Width
    16.53 in (419.86 mm)
  • Continuous Current Rating
    80 %
  • Height
    16.24 in (412.50 mm)
  • Depth
    14.49 in (368.05 mm)
  • Electrical Connection
    Busbar connection line Busbar connection load
  • Tightening Torque
    601.85 lbf.in (68 N.m) 0.08…0.62 in² (50…400 mm²) (AWG 1/0...750 kcmil) 601.85 lbf.in (68 N.m) 0.08…0.23 in² (50…150 mm²) (AWG 1/0...300 kcmil)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RJF36160U41A on Powermatic Associates is $25,188.00. Order now.

RJF36160U41A Related Documents

Product Datasheet-1631034469655.pdfInstruction Sheet-1631034469650.pdfCatalog-1631034469657.pdf
