S29371 Schneider Electric Electronic Components

S29371 on Powermatic Associates
Schneider Electric

Part#:S29371

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

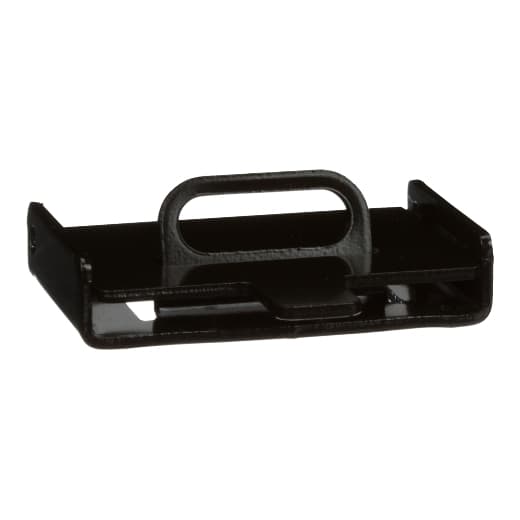

Square D by Schneider Electric S29371 is a locking device designed for fixed OFF or ON locking. It functions as a padlocking device, ensuring secure locking capabilities. The dimensions of this part are a net width of 60 mm, a net height of 21 mm, and a net depth of 59 mm.

Product Details

  • Width
    2.36 in (59.94 mm)
  • Tightening Torque
    10.62 lbf.in (1.2 N.m)
  • Height
    0.807 in (20.50 mm)
  • Depth
    2.32 in (58.93 mm)
  • Circuit Breaker Type
    Standard

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S29371 Related Documents

Instruction Sheet-1631032876534.pdfProduct Datasheet-1631032876531.pdf
