TM5SDI12D Schneider Electric Industrial Automation Components

TM5SDI12D on Powermatic Associates
Schneider Electric

Part#:TM5SDI12D

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

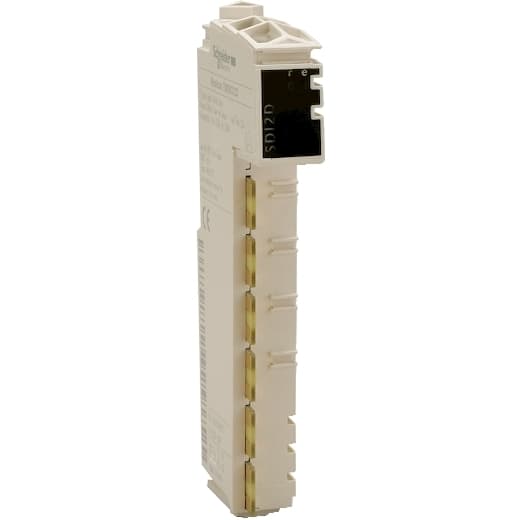

Schneider Electric TM5SDI12D is an I/O unit categorized under the Modicon TM5 I/O modules sub-range, designed specifically as a DC digital input module. It features a connection type of removable spring terminal block, which is sold separately, and comes in a white color. The unit operates on a supply voltage of 19-30Vdc, with a nominal voltage of 24Vdc, and is mounted via symmetrical DIN rail mounting. It is designed to operate within an ambient air temperature range of +14 to +131°F (-10 to +55°C) for horizontal installation, with a derating factor allowing operation up to +140°F (+60°C), and for vertical installation, it can operate within +14 to +122°F (-10 to +50°C). The TM5SDI12D offers an IP20 degree of protection and consumes 36mA of current at 5Vdc via bus and 73mA at 24Vdc with all inputs ON. It includes 12 x 24Vdc digital inputs (Sink) and can be stored in conditions ranging from -40 to +158°F (-40 to +70°C) with a humidity range of 5-95% without condensation. The power dissipation/losses are rated at 1.93 W.

Product Details

  • Range Of Product
    Modicon TM5
  • Voltage State 0 Guaranteed
    <= 5 V
  • Maximum Power Dissipation In W
    1.93 W
  • Marking
    CE
  • Net Weight
    0.06 lb(US) (0.025 kg)
  • Discrete Input Voltage Type
    DC
  • Discrete Input Number
    12
  • Voltage State 1 Guaranteed
    >= 15 V
  • Discrete Input Logic
    Sink
  • Discrete Input Current
    3.75 mA
  • Color
    White
  • Electrical Connection
    1 wire
  • Product Or Component Type
    Discrete input module
  • Input Voltage Limits
    20.4...28.8 V
  • Input Impedance
    6.4 kOhm
  • Discrete Input Voltage
    24 V
  • Current Consumption
    36 mA 5 V DC bus 73 mA 24 V DC all inputs On
  • Input Filtering
    <= 25 ms configurable by software <= 100 ms hardware
  • Isolation
    500 Vrms AC insulation between channel and bus No insulation between channels
  • Local Signalling
    1 LED green power supply 1 LED red power supply 12 LEDs green input status
  • Range Compatibility
    PacDrive LMC motion controller Modicon M258 Modicon LMC058
  • Product Compatibility
    Motion controller PacDrive LMC Pro PacDrive LMC Pro 2 Logic controller PacDrive LMC Eco

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
