UTRS101B Schneider Electric Industrial Automation Components

UTRS101B on Powermatic Associates
Schneider Electric

Part#:UTRS101B

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

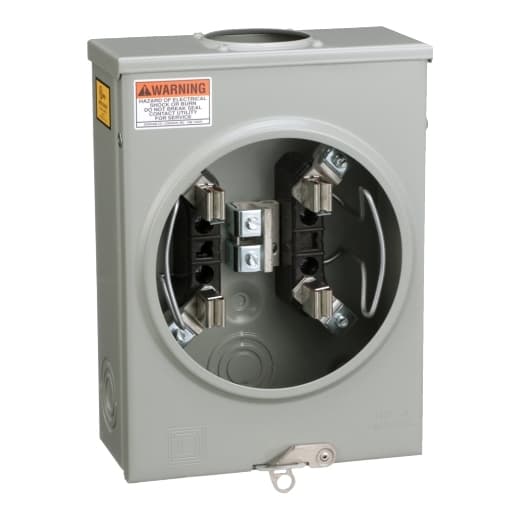

Square D by Schneider Electric UTRS101B is a meter center main unit designed with a ringless meter socket and 4 jaws, lacking a jaw release mechanism. Constructed with a steel enclosure, it features lug-type connections. The dimensions of this unit are H276mm x W203mm x D89mm (H10.88" x W8" x D3.5"). It is rated for a current of 125A and is suitable for surface mounting. The UTRS101B offers a degree of protection rated at NEMA 3R and operates at a rated voltage of 600Vac. It is compatible with a single-phase (1PH-3W) network type.

Product Details

  • Hub Type
    A ACP closing plate
  • Electrical Connection
    Lugs slotted
  • Enclosure Material
    Steel
  • Meter Socket Type
    Ringless
  • Height
    10.88 in (276.35 mm)
  • Meter Socket Rated Current
    125 A
  • Wiring Configuration
    3-wire
  • Product Or Component Type
    Meter Socket
  • Number Of Jaws
    4 without jaw release
  • Width
    8.00 in (203.20 mm)
  • Phase
    1 phase
  • Box Number
    1R
  • [Ue] Rated Operational Voltage
    600 V AC
  • Service Feed Location
    OH
  • Bypass Type
    No bypass
  • Device Mounting
    Surface
  • Depth
    3.50 in (88.90 mm)
  • AWG Gauge
    AWG 8...AWG 2/0 1 aluminium/copper)line AWG 14...AWG 2 1 aluminium/copper)service ground

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of UTRS101B on Powermatic Associates is $123.00. Order now.
