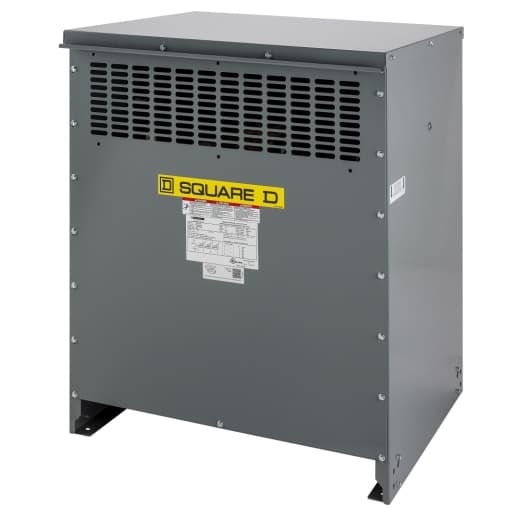

EXN150T3HB Schneider Electric Industrial Automation Components

Product Details

• DOE Efficiency
  98.92 % at 35 % load factor , 167 °F (75.0 °C)
• %IX
  3.73 %
• Net Weight
  1208.00 lb(US) (547.94 kg)
• Rated Operational Power In VA
  150 kVA
• Network Frequency
  60 Hz
• Secondary Voltage
  208Y/120 V
• X/R Ratio
  3.13
• Number Of Mounting Holes
  0.51 in (13 mm)
• Device Short Name
  DOE 2016
• Transformer Type
  Energy efficient
• Type Of Cooling
  Natural convection
• %IZ
  3.92 %
• Depth
  32.56 in (827 mm)
• Product Or Component Type
  DOE 2016 energy efficient transformer
• Primary Voltage
  480 V delta
• Phase
  3 phase
• Let Through Current
  11.16 kA
• Device Application
  Low voltage electrical distribution
• Basic IMP Level (BIL)
  10 kV
• Inrush Current
  1909 A
Width
33.66 in (855 mm)
Range Of Product
Square D
Height
40.59 in (1031 mm)
Box Number
22M
Primary Operational Current
180.42 A 416.36 A 150 kVA
Coil Material
Aluminium
Transformer Losses
348 no load (core loss) 1971 load loss (coil loss)
Temperature Rise
80 °C 220 °C insulated
Number Of Tap-Offs
2 2.5 % FCAN 4 2.5 % FCBN
Degree Of Protection
UL type 2 UL type 3R, with 7400WS22M
Sound Level
47 dB 1 dB NEMA ST-20
Electrical Connection
6 Hole Nema Pad secondary 0.44 in (11.1 mm) 8 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
Mounting Support
Floor Floor, with 7400FMB Ceiling, with 7400CMB22M
Transformer BTU/HR
1374 16.6 % 1608 25 % 2869 50 % 4970 75 % 7913 100 %
