Part#:XALK198

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

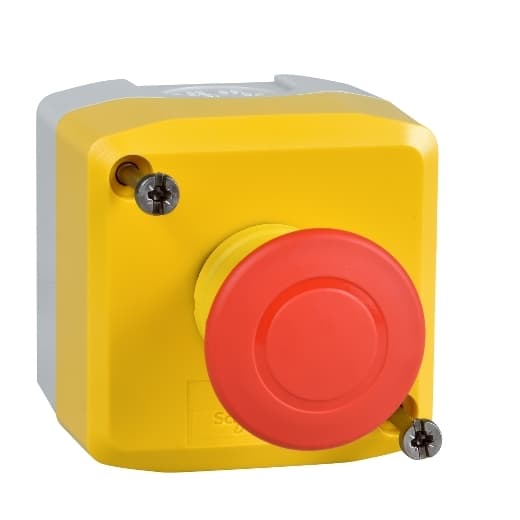

Schneider Electric XALK198 is a control station designed for emergency stop functions, featuring a red mushroom head pushbutton. It is part of the XALK sub-range and offers a rated impulse voltage (Uimp) of 6 kV. The unit is constructed from polycarbonate (PC), ensuring durability, and provides a high degree of protection with ratings of IP69, IP67, IP66, IP69K, NEMA 13, and NEMA 4X. The rated current varies with voltage and type, including 6 A at 120Vac (AC-15), 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.55 A at 125Vdc (DC-13), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). It boasts a mechanical durability of 3,000,000 operations at no load and an electrical durability of 1,000,000 operations with load. The mushroom head diameter is 40 mm, with net dimensions of 68 mm in height, 91.5 mm in depth, and 68 mm in width. The rated insulation voltage (Ui) is 600 V, and it includes 1 NC (Normally Closed) auxiliary contact. The control station is designed to operate in a push-pull mode, with screw-clamp type terminals, and can withstand ambient air temperatures for storage ranging from -40 to +70 °C. The minimum and maximum operating temperatures are -40 °C and 70 °C, respectively.

Product Details

  • [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
  • Shape Of Screw Head
    Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
  • Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
  • Cable Entry
    1 knock-out for cable entry 0.00…0.55 in (0…14 mm) 2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
  • Operating Travel
    0.06 in (1.5 mm) NC changing electrical state) 0.17 in (4.3 mm) total travel)
  • Control Station Application
    Emergency stop function Emergency switching off function
  • Connections - Terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
  • Electrical Reliability
    Λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV EN/IEC 60947-1
  • Short-Circuit Protection
    10 A cartridge fuse gG EN/IEC 60947-5-1
  • Contacts Material
    Silver alloy (Ag/Ni)
  • Mechanical Durability
    300000 cycles
  • Reset
    Push-pull
  • Tightening Torque
    7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
  • Operators Description
    Red unmarked 1 NC
  • Control Station Composition
    1 mushroom head Ø 40 mm push-button, red 1 NC unmarked
  • Net Weight
    0.40 lb(US) (0.183 kg)
  • Operator Profile
    1 mushroom head push-button
  • Colour Of Base Of Enclosure
    Light grey (RAL 7035)
  • Colour Of Cover
    Yellow RAL 1021)
  • Device Short Name
    XALK
  • Range Of Product
    Harmony XALK
  • [Ui] Rated Insulation Voltage
    600 V 3)EN/IEC 60947-1
  • [Ith] Conventional Free Air Thermal Current
    10 A EN/IEC 60947-5-1
  • Operating Force
    50 N
  • Positive Opening
    With conforming to EN/IEC 60947-5-1 appendix K
  • Resistance To High Pressure Washer
    1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
  • Contact Operation
    Slow-break
  • Material
    Polycarbonate
  • Product Or Component Type
    Complete control station
  • Product Destination
    For XB5 Ø 22 mm control and signalling units

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XALK198 on Powermatic Associates is $99.00. Order now.

XALK198 Related Documents

Instruction Sheet-1631028749287.pdfProduct Datasheet-1631028749294.pdfCatalog-1631028749284.pdf

Similar products from: Schneider Electric Industrial Automation Components

LC1D95M7 on Powermatic Associates

LC1D95M7

Schneider Electric

Schneider Electric LC1D95M7 is a magnetic contactor from the Deca sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 125A (AC-1) and 95A (440Vac; AC-3), with a mounting mode designed for DIN rail installation. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 176-242Vac (220Vac nom.; 50Hz; 0.8...1.1 x Uc) to 187-242Vac (220Vac nom.; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 8 kV. This contactor is capable of handling rated active power ranging from 25kW (220-230Vac; AC-3) to 55kW (500Vac; AC-3), with specific ratings for various voltages up to 1000Vac. It also supports rated power (HP) for motors from 7.5HP (115Vac; single-phase) to 60HP (575-600Vac; 3-phase), under UL/CSA standards. The mechanical durability of the LC1D95M7 is rated at 4,000,000 operations, and its electrical durability (with load) is rated at 1,200,000 operations. The rated voltage (AC) for phase-to-phase connections is 1000 V.

17 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F43303 on Powermatic Associates

M9F43303

Schneider Electric

Schneider Electric M9F43303 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed with a 3-pole configuration. It has a rated current of 3A and features a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it is equipped with a D tripping curve.

5 in stock
VW3A9921 on Powermatic Associates

VW3A9921

Schneider Electric

Schneider Electric VW3A9921 is an adapter designed for direct circuit breaker mounting. This mechanical adapter kit facilitates the integration of components by providing a compatible interface for secure and straightforward installation.

12 in stock
M9F53220 on Powermatic Associates

M9F53220

Schneider Electric

Schneider Electric M9F53220 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2 Pole configuration and a rated current of 20A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The M9F53220 offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and has 2 protected poles. The tripping curve for this MCB is classified as D.

1 in stock

Manufacturer warranty

XALK198 Schneider Electric

$99.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$99.00

$99.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare XALK198 with other Industrial Automation Components products

[Ie] Rated Operational Cu...

Shape Of Screw Head

Electrical Durability

Cable Entry

Operating Travel

Control Station Applicati...

Connections - Terminals

Electrical Reliability

[Uimp] Rated Impulse With...

Short-Circuit Protection

Selected product

XALK198
Backordered
XALK198
Schneider Electric

Schneider Electric XALK198 is a control station designed for emergency stop functions, featuring a r...

[Ie] Rated Operational Current3 A 240 V, AC-15, A600 EN/IE...

Shape Of Screw HeadCross Philips no 1 Cross poz...

Electrical Durability1000000 cycles, AC-15, 2 A 2...

Cable Entry1 knock-out for cable entry ...

Operating Travel0.06 in (1.5 mm) NC changing...

Control Station ApplicationEmergency stop function Emer...

Connections - TerminalsScrew clamp terminals, <= 2 ...

Electrical ReliabilityΛ < 10exp(-6) 5 V, 1 mA EN/I...

[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1

Short-Circuit Protection10 A cartridge fuse gG EN/IE...

XB5AW31B5
2 in stock
XB5AW31B5
Schneider Electric

Schneider Electric XB5AW31B5 is an illuminated flush push-button designed for automation application...

[Ie] Rated Operational Current-

Shape Of Screw Head-

Electrical Durability-

Cable Entry-

Operating Travel-

Control Station Application-

Connections - Terminals-

Electrical Reliability-

[Uimp] Rated Impulse Withstand Voltage-

Short-Circuit Protection-

XB5AW34B5
2 in stock
XB5AW34B5
Schneider Electric

Schneider Electric XB5AW34B5 is an illuminated flush push-button designed for automation control sys...

[Ie] Rated Operational Current-

Shape Of Screw Head-

Electrical Durability-

Cable Entry-

Operating Travel-

Control Station Application-

Connections - Terminals-

Electrical Reliability-

[Uimp] Rated Impulse Withstand Voltage-

Short-Circuit Protection-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

M-2218-3.0ES500 on Powermatic Associates

M-2218-3.0ES500

Novanta IMS

Novanta IMS M-2218-3.0ES500 is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a 500-line single-end optical encoder with an index mark and a smooth shaft with a single flat (single shaft end) single (1) motor stack. It is designed with bare end flying leads for connection, operates on a rated current of 3A, and supports a supply voltage range of 24Vdc-75Vdc, including 48Vdc, 60Vdc, and 72Vdc options. This stepper motor is equipped with a 57x57mm flange for mounting, can operate in ambient air temperatures ranging from -25 to +40°C, and has a moment of inertia of 0.12kg.cm^2. It delivers a stall torque of 71N.cm (100oz-in) and can be stored in temperatures ranging from -25 to +70°C. The motor offers a resolution of 1.8° step angle.

0 in stock

Relevant products

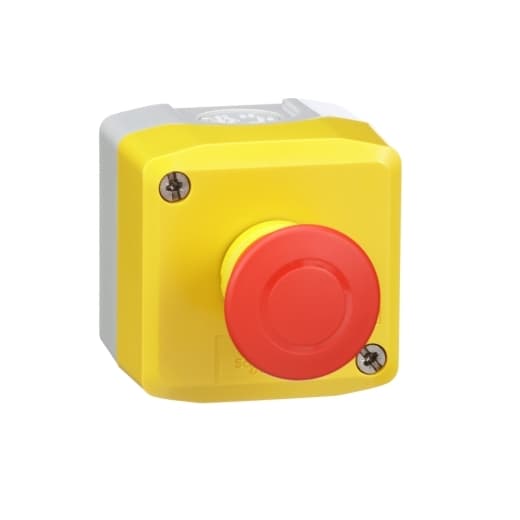

XALK198H7 on Powermatic Associates

XALK198H7

Verified stock: 0

Schneider Electric XALK198H7 is a pendant station within the XALK sub-range designed for emergency switch functions, featuring a red mushroom head pushbutton. It is constructed from polycarbonate (PC) and offers a high degree of protection with ratings of IP69, IP66, IP67, IP69K, NEMA 13, and NEMA 4X. The rated impulse voltage (Uimp) is 6 kV, and it has a rated insulation voltage (Ui) of 600 V. This part supports rated currents of 6 A at 120Vac (AC-15), 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.55 A at 125Vdc (DC-13), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). It features 1 NC (Normally Closed) auxiliary contact and screw-clamp type terminals. The mechanical durability of the part is rated at 300,000 operations at no load, and its electrical durability with load is 1,000,000 operations. The mushroom head diameter is 40 mm. It is designed to operate in a push-pull mode and can withstand ambient air temperatures for storage ranging from -40 to +70 °C, with operational temperature limits also set at a minimum of -40 °C and a maximum of 70 °C.

Schneider Electric

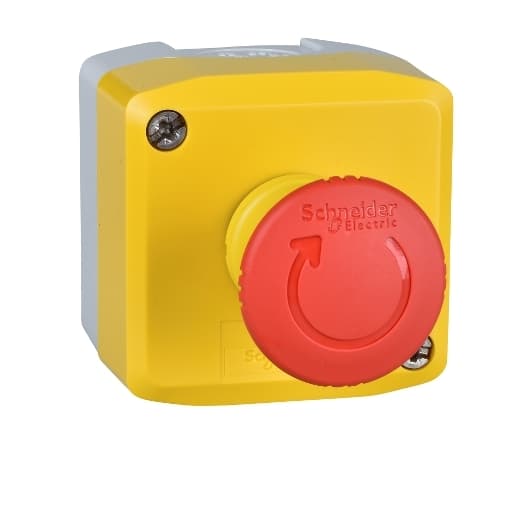

XALK178 on Powermatic Associates

XALK178

Verified stock: 0

Schneider Electric XALK178 is a control station designed for emergency stop functions, featuring a red mushroom head pushbutton. It is part of the XALK sub-range and is constructed from polycarbonate (PC), ensuring durability. This control station is equipped with a rated impulse voltage (Uimp) of 6 kV and offers a high degree of protection with ratings of IP69, IP67, IP66, IP69K, NEMA 13, and NEMA 4X. It supports rated currents of 6 A at 120Vac (AC-15), 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.55 A at 125Vdc (DC-13), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). The device boasts a mechanical durability of 3,000,000 operations at no load and an electrical durability of 1,000,000 operations with load. The mushroom head diameter is 40 mm, with overall dimensions of 68 mm in height, 92.5 mm in depth, and 68 mm in width. It has a rated insulation voltage (Ui) of 600 V and includes 1 NC (Normally Closed) auxiliary contact. The XALK178 is designed for a wide range of ambient temperatures, from -40 to +70 °C, and features screw-clamp terminals for connections. It operates with a turn-to-release mechanism, ensuring ease of use in emergency situations.

Schneider Electric

XALK178E on Powermatic Associates

XALK178E

Verified stock: 0

Schneider Electric XALK178E is a control station designed for emergency stop functions, featuring a red mushroom head pushbutton. It is part of the XALK sub-range and is constructed from polycarbonate (PC), ensuring durability. This control station is equipped with a rated impulse voltage (Uimp) of 6 kV and offers a degree of protection rated at IP69, IP67, IP66, IP69K, NEMA 13, and NEMA 4X. It supports a rated current of 6 A at 120Vac (AC-15), 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.55 A at 125Vdc (DC-13), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). The XALK178E boasts a mechanical durability of 3,000,000 operations at no load and an electrical durability of 1,000,000 operations with load. The mushroom head diameter is 40 mm, with net dimensions of 68 mm in height, 92.5 mm in depth, and 68 mm in width. It features 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, a rated insulation voltage (Ui) of 600 V, and screw-clamp type terminals. The control station operates with a turn-to-release mechanism and is designed to function within an ambient air temperature range for storage of -40 to +70 °C, with minimum and maximum operating temperatures also set at -40 °C and 70 °C, respectively.

Schneider Electric

XALK178GH7 on Powermatic Associates

XALK178GH7

Verified stock: 0

Schneider Electric XALK178GH7 is a pendant station within the XALK sub-range, designed with a control station featuring an emergency switch function through a 40 mm red mushroom head pushbutton. This part is constructed from polycarbonate (PC), ensuring durability, and offers a high degree of protection rated at IP69, IP66, IP67, IP69K, NEMA 13, and NEMA 4X. It supports a rated current of 6 A at 120Vac (AC-15), 3 A at 240Vac (AC-15), 1.2 A at 600Vac (AC-15), 0.55 A at 125Vdc (DC-13), 0.27 A at 250Vdc (DC-13), and 0.1 A at 600Vdc (DC-13). The XALK178GH7 features mechanical durability of 300,000 operations at no load and electrical durability of 1,000,000 operations with load. It includes 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts, with a rated insulation voltage (Ui) of 600 V. The device operates with screw-clamp terminals and is designed for turn-to-release operation mode. It can withstand ambient air temperatures for storage ranging from -40 to +70 °C, with operational temperature limits also set between -40 °C and 70 °C, ensuring functionality across a wide range of environmental conditions.

Schneider Electric

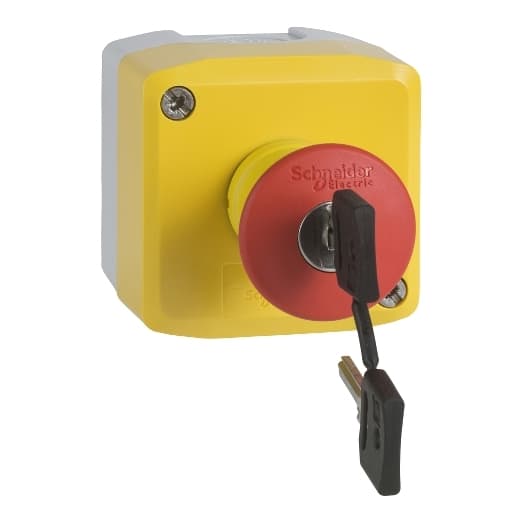

XALK188EH7 on Powermatic Associates
