XVLA233 Schneider Electric Industrial Automation Components

XVLA233 on Powermatic Associates
Schneider Electric

Part#:XVLA233

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

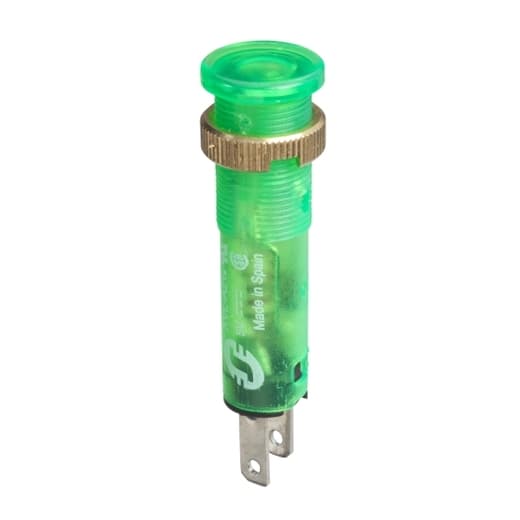

Schneider Electric XVLA233 is a pilot light from the XVL sub-range, designed to function as a pilot light/lamp with a covered LED. This part features a round shape and offers a degree of protection rated at IP40 and IP65, making it suitable for various environments. It has a diameter of 8 mm, a net height of 10 mm, a net depth of 36 mm, and a net width of 10 mm. The XVLA233 operates on a supply voltage of 24 V DC and emits a green light. It includes protection functions such as an integral ballast resistor and a built-in diode. The type of terminals provided are fast-on, and it comes with an integral lens cap for the LED.

Product Details

  • Light Source
    Covered LED
  • Terminals Description ISO N°1
    (X1-X2)PL
  • Current Consumption
    18 mA
  • Mounting Diameter
    0.31 in (8 mm)
  • Height
    0.39 in (10 mm)
  • Light Block Colour
    Green
  • Nominal Voltage Limit
    0.8...1.1 Un
  • Range Of Product
    Harmony XVL
  • Supply Circuit Type
    DC
  • Depth
    1.42 in (36 mm)
  • [Us] Rated Supply Voltage
    24 V
  • Width
    0.39 in (10 mm)
  • Component Name
    XVL
  • [Ui] Rated Insulation Voltage
    50 V IEC 60947-1
  • Product Or Component Type
    LED pilot light with integral lens cap
  • Net Weight
    0.01 lb(US) (0.003 kg)
  • Bulb Lifespan
    100000 h
  • Protection Type
    Integral ballast resistor Built-in by diode
  • Connections - Terminals
    Tag for Faston connectors 2.8 x 0.5 mm Tag for soldering connectors
  • IP Degree Of Protection
    IP65 IEC 60529 with seal XVLZ911) IP65 NF C 20-010 with seal XVLZ911) IP40 IEC 60529 IP40 NF C 20-010

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XVLA233 on Powermatic Associates is $32.80. Order now.

XVLA233 Related Documents

Product Datasheet-1631030032721.pdfCatalog-1631030032706.pdf
