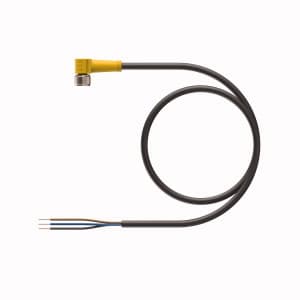

PKW 3M-5/S90 Turck Cordsets

PKW 3M-5/S90 on Powermatic Associates

Part#:PKW 3M-5/S90

Alt. Part#:U0071-3

Manufacturer:Turck

Category:Cordsets

Product Lifecycle:Active

Product description

PKW 3M-5/S90 Turck - PKW 3M-5/S90 Actuator and Sensor Cordset, Connection Cable

Product Details

Type
Cordsets
Gauge
24 AWG
Number of conductors
3
RoHS
Yes
Series
M8 picofast
Cable Length
5 m
Country Of Origin
MEX
HTS Code
8544429090
Connector 1 - Configuration
Right Angle
Connector 1 - Type
Female Connector
Connector 1 - Size
M8
Connector 2 - Configuration
Flying Leads
Connector 1 - Pins
3
Cable Jacket Material
TPU
Cable length (L)
5.0 m
Voltage
125 volts
Connector A - Style
Right angle, Female
Connector A
M8 × 1
Number of Conductors
3
Cable Jacket Color
Black

Connector A - Number of Pins

3

Approvals

UL Listed, CSA, CE, RoHS

Current

4 amperes

Application

Actuator and Sensor

Material coupling/housing A

Brass

Length

5.0 meters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PKW 3M-5/S90 on Powermatic Associates is $33.60. Order now.

About the product

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 5 m, M8, Female, Right-angle, 3-pin, Threaded Connector, General Purpose Cable, TPU jacket, Black, 3X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Flexlife® and C-Track Approved, Cable length: 5 m
