REI-E-114I10T-2B360-H1181 Turck Industrial Automation Components

Name: REI-E-114I10T-2B360-H1181
Brand: Turck

REI-E-114I10T-2B360-H1181 on Powermatic Associates

Part#:REI-E-114I10T-2B360-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

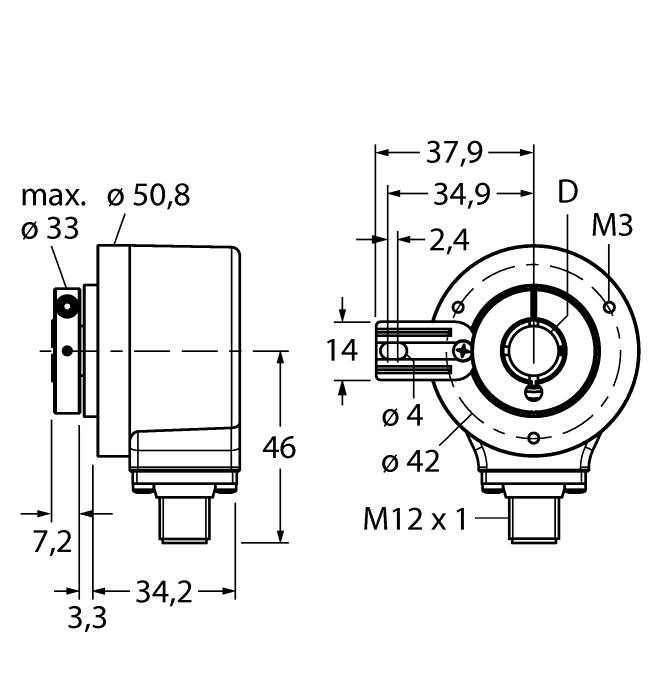

REI-E-114I10T-2B360-H1181 Turck - REI-E-114I10T-2B360-H1181 Incremental Encoder, Efficiency Line

Product Details

Shaft diameter D [mm]
10 mm
Housing material
Die-cast zinc
Flange type
Flange with mounting element
Protection class
IP64
Resolution, incremental
360 ppr
Flange diameter
Ø 50.8 mm
Operating voltage
10…30 VDC
Protection class shaft
IP64
Output type
Incremental
Technology
Optical
Electrical connection
Connector, M12 × 1
Shaft Type
Hollow shaft
Encoder line
Efficiency-Line
Output function
Push-Pull/HTL, with inverted signals
Ambient temperature
-20…+70 °C
Weight
328 grams
Operating Voltage
10 volts, 30 volts
Country of Origin
India
Ambient Temperature
-20 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Incremental Encoder, Efficiency Line, Resolution, incremental 360 ppr, Flange with torque stop, Hollow shaft, Ø 10 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 360 pulses per revolution
