REI-E-114I8E-2B512-H1181 Turck Industrial Automation Components
Part#:REI-E-114I8E-2B512-H1181
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Discontinued
Product description
REI-E-114I8E-2B512-H1181 Turck - REI-E-114I8E-2B512-H1181 Incremental Encoder, Efficiency Line
Product Details

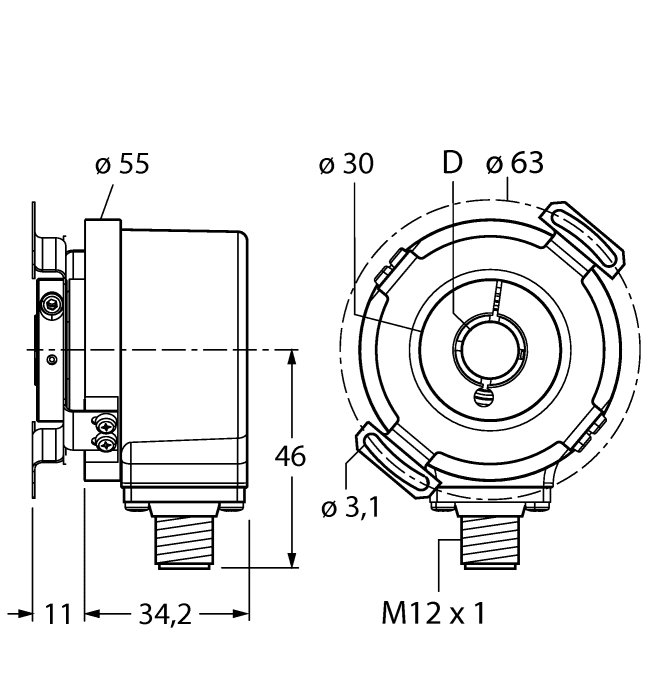

- Flange diameter Ø 63 mm
- Protection class shaft IP64
- Encoder line Efficiency-Line
- Output type Incremental
- Output function Push-Pull/HTL, with inverted signals
- Technology Optical
- Shaft Type Hollow shaft
- Operating voltage 10…30 VDC
- Housing material Die-cast zinc
- Resolution, incremental 512 ppr
- Ambient temperature -20…+70 °C
- Protection class IP64
- Flange type Flange with stator coupling
- Shaft diameter D [mm] 8 mm
- Electrical connection Connector, M12 × 1
- Operating Voltage 10 volts, 30 volts
- Country of Origin India
- Weight 400 grams
- Ambient Temperature -20 degrees celsius, 70 degrees celsius
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Incremental Encoder, Efficiency Line, Resolution, incremental 512 ppr, Flange with stator coupling, Ø 63 mm, Hollow shaft, Ø 8mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP64 on housing and shaft side, ‐20…+70 °C, Max. 4500 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 512 pulses per revolution
