RES-193B10E-IOL14B-H1141 Turck Industrial Automation Components

Name: RES-193B10E-IOL14B-H1141
Brand: Turck
Price: 540.1 USD
Availability: BackOrder

RES-193B10E-IOL14B-H1141 on Powermatic Associates

Part#:RES-193B10E-IOL14B-H1141

Alt. Part#:100020152

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

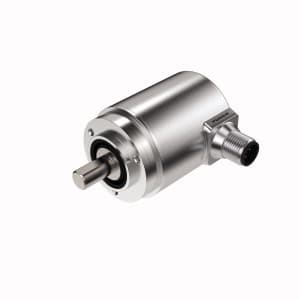

RES-193B10E-IOL14B-H1141 Turck - RES-193B10E-IOL14B-H1141 Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line

Product Details

Weight
270 g
Country Of Origin
DEU
HTS Code
9032894000
Operating voltage
18…30 VDC
Shaft diameter D [mm]
10 mm
Electrical connection
Connector, M12 × 1
Shaft Type
Blind hole shaft
Communication protocol
IO-Link
Output type
Absolute singleturn
Technology
Magnetic
Encoder line
Industrial-Line
Flange diameter
Ø 46 mm
Protection class
IP67
Housing material
Die-cast zinc
Measuring range
0…360°
Flange type
Flange with stator coupling
Protection class shaft
IP67
Ambient temperature
-40…+85 °C
Country of Origin
Germany
Weight
270 grams

Operating Voltage

18 volts, 30 volts

Ambient Temperature

-40 degrees celsius, 85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RES-193B10E-IOL14B-H1141 on Powermatic Associates is $540.10. Order now.

About the product

Absolute Rotary Encoder - Single-Turn, IO-Link, Industrial Line, Flange with slotted flex mount, Ø 46 mm, Hollow shaft, Ø 10mm, Optical measuring principle, Shaft material, stainless steel, , IP67 rated on the shaft side, ‐40…+85 °C, Max. 4000 rev/min, , 10-30 VDC, SSI (Binary Code), M12 connection, 8-pin, , 360° resolved in 14 bit (16384 positions)

RES-193B10E-IOL14B-H1141 Related Documents

English-1630966142452.pdf
