RI-01T4F1-2A100-C Turck Industrial Automation Components

RI-01T4F1-2A100-C on Powermatic Associates
Turck

Part#:RI-01T4F1-2A100-C

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:1545768

Product Lifecycle:Active

Get a quick Quote!

RI-01T4F1-2A100-C Incremental Encoder, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI-01T4F1-2A100-C Turck price in the box on the right side or send a quick quote.

Product Details

  • Country Of Origin
    USA
  • HTS Code
    9029108000
  • Operating Voltage
    30 volts, 8 volts
  • Ambient Temperature
    85 degrees celsius
  • Protection class shaft
    IP50
  • Housing material
    Aluminium
  • Ambient temperature
    -20…+85 °C
  • Electrical connection
    Cable
  • Output function
    Push-Pull/HTL, with inverted signals
  • Protection class housing
    IP64
  • Output type
    Incremental
  • Flange type
    Synchro flange
  • Operating voltage
    8…30 VDC
  • Resolution, incremental
    100  ppr
  • Flange diameter
    Ø  24  mm
  • Shaft diameter D [mm]
    4  mm
  • Shaft Type
    Solid shaft
  • Technology
    Optical
  • Encoder line
    Industrial-Line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI-01T4F1-2A100-C Description

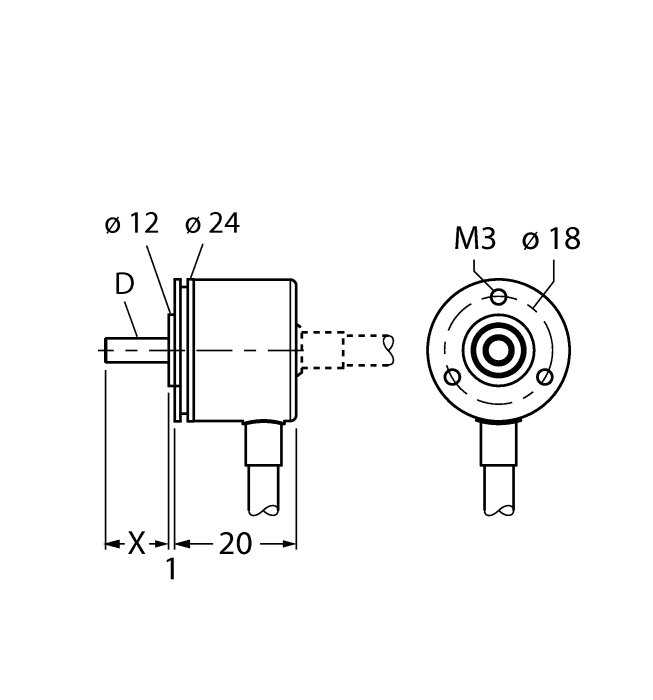

Incremental Encoder, Industrial Line, Resolution, incremental 100 ppr, Synchro flange, Ø 24 mm, Solid shaft, Ø 4mm × 10 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP50 on shaft side, ‐20…+85 °C, Max. 12000 rpm, 8…30 VDC, Cable connection, 8-pin, Push-pull with inversion, Pulse frequency max. 160 kHz, 100 pulses per revolution

Manufacturer warranty

$320.10

Request a quote, and we will send availability within minutes.

Select Qty:

$320.10

$320.10 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
