RI-10S10C-2B1000-H1181 Turck Industrial Automation Components
Part#:RI-10S10C-2B1000-H1181
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Discontinued
Product description

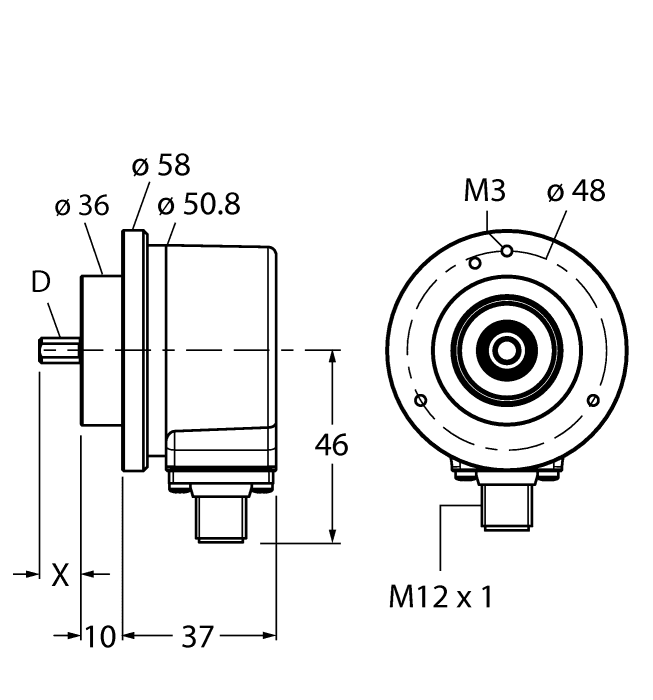

RI-10S10C-2B1000-H1181 Turck - RI-10S10C-2B1000-H1181 Incremental Encoder, Industrial Line
Product Details
- Shaft Type Solid shaft
- Protection class shaft IP67
- Housing material Die-cast zinc
- Operating voltage 10…30 VDC
- Resolution, incremental 1000 ppr
- Protection class IP67
- Flange type Clamping flange
- Flange diameter Ø 58 mm
- Ambient temperature -40…+85 °C
- Encoder line Industrial-Line
- Output function Push-Pull/HTL, with inverted signals
- Shaft diameter D [mm] 10 mm
- Electrical connection Connector, M12 × 1
- Technology Optical
- Output type Incremental
- Ambient Temperature -40 degrees celsius, 85 degrees celsius
- Weight 367 grams
- Operating Voltage 10 volts, 30 volts
- Country of Origin Germany
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI-10S10C-2B1000-H1181 on Powermatic Associates is $390.00. Order now.
About the product
Incremental Encoder, Industrial Line, Resolution, incremental 1000 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1000 pulses per revolution
