RI-10S10C-4B2500-H1481 Turck Industrial Automation Components
Part#:RI-10S10C-4B2500-H1481
Alt. Part#:1545655
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

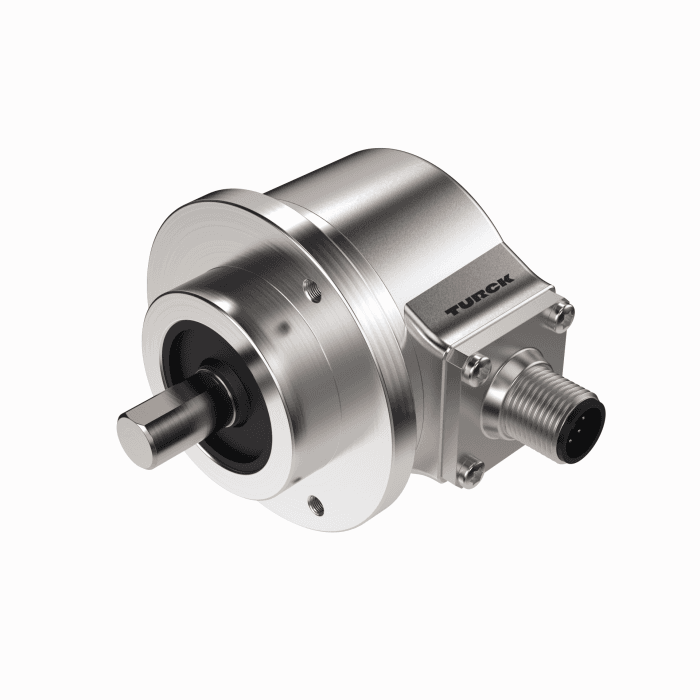

RI-10S10C-4B2500-H1481 Turck - RI-10S10C-4B2500-H1481 Incremental Shaft Encoder, Industrial Line
Product Details
- RoHS Yes
- Country Of Origin USA
- HTS Code 9029108000
- Encoder line Industrial-Line
- Protection class IP67
- Operating voltage 5…30 VDC
- Flange type Clamping flange
- Ambient temperature -40…+85 °C
- Resolution, incremental 2500 ppr
- Protection class shaft IP67
- Flange diameter Ø 58 mm
- Shaft diameter D [mm] 10 mm
- Output function RS422/TTL, with inverted signals
- Shaft Type Solid shaft
- Output type Incremental
- Housing material Die-cast zinc
- Technology Optical
- Electrical connection Connector, M12 × 1
- Ambient Temperature -40 degrees celsius, 85 degrees celsius
- Operating Voltage 30 volts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI-10S10C-4B2500-H1481 on Powermatic Associates is $390.00. Order now.
About the product
Incremental Shaft Encoder, Industrial Line, Resolution, incremental 2500 ppr, Clamping flange, Ø 58 mm, Solid shaft, Ø 10 mm × 20 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 2500 pulses per revolution
