RI-12HA4S1-2B32-H1181 Turck Industrial Automation Components

Name: RI-12HA4S1-2B32-H1181
Brand: Turck

RI-12HA4S1-2B32-H1181 on Powermatic Associates

Part#:RI-12HA4S1-2B32-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

RI-12HA4S1-2B32-H1181 Turck - RI-12HA4S1-2B32-H1181 Incremental Encoder, Industrial Line

Product Details

Operating voltage
10…30 VDC
Protection class
IP67
Electrical connection
Connector, M12 × 1
Output type
Incremental
Ambient temperature
-40…+85 °C
Shaft Type
Hollow shaft
Protection class shaft
IP67
Resolution, incremental
32 ppr
Encoder line
Industrial-Line
Housing material
Die-cast zinc
Flange type
Flange with mounting element
Technology
Optical
Output function
Push-Pull/HTL, with inverted signals
Ambient Temperature
-40 degrees celsius, 85 degrees celsius
Operating Voltage
10 volts, 30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

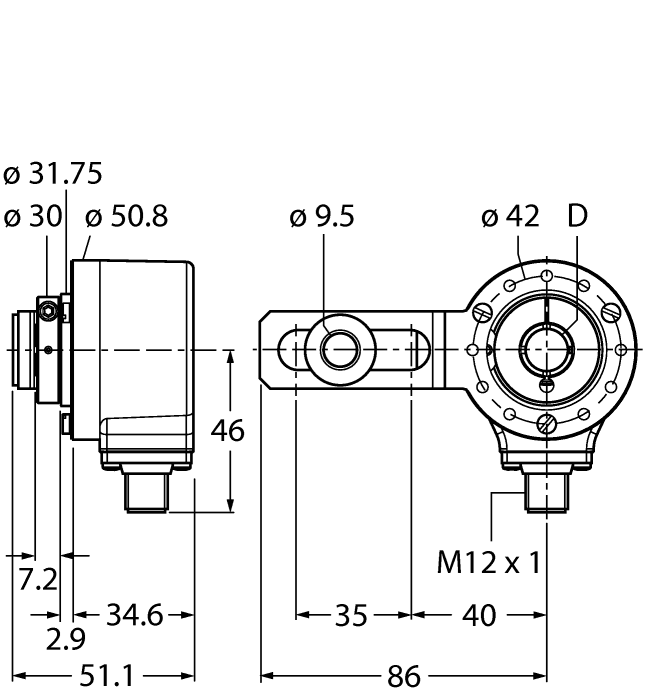

Incremental Encoder, Industrial Line, Resolution, incremental 32 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 5/8”, Optical measuring principle, Shaft material: stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 32 pulses
