RI-12I8S1-2B1024-H1181 Turck Industrial Automation Components

Name: RI-12I8S1-2B1024-H1181
Brand: Turck

RI-12I8S1-2B1024-H1181 on Powermatic Associates

Part#:RI-12I8S1-2B1024-H1181

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

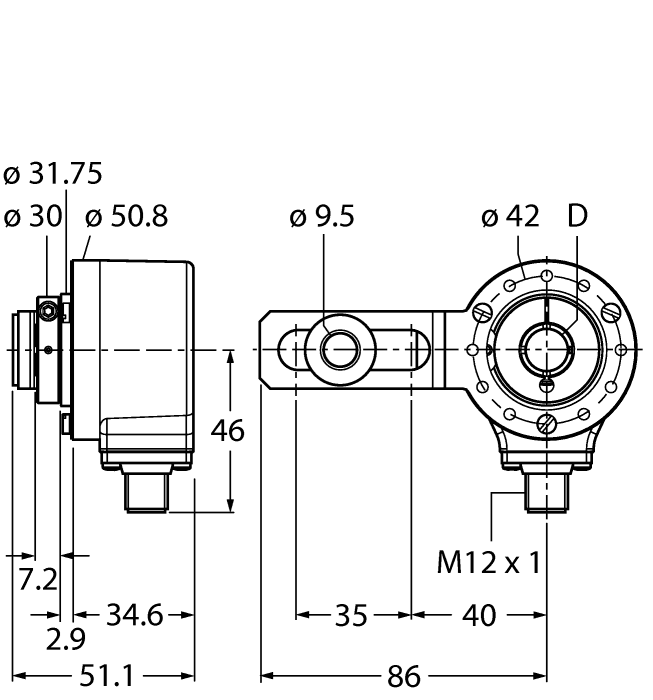

RI-12I8S1-2B1024-H1181 Turck - RI-12I8S1-2B1024-H1181 Incremental Encoder, Industrial Line

Product Details

Operating voltage
10…30 VDC
Resolution, incremental
1024 ppr
Housing material
Die-cast zinc
Encoder line
Industrial-Line
Technology
Optical
Shaft diameter D [mm]
8 mm
Output type
Incremental
Shaft Type
Hollow shaft
Flange type
Flange with mounting element
Output function
Push-Pull/HTL, with inverted signals
Protection class
IP67
Protection class shaft
IP65
Electrical connection
Connector, M12 × 1
Ambient temperature
-40…+85 °C
Operating Voltage
10 volts, 30 volts
Ambient Temperature
-40 degrees celsius, 85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Incremental Encoder, Industrial Line, Resolution, incremental 1024 ppr, Flange with tether arm for 40-75mm mounting diameters, Hollow shaft, Ø 8 mm, Optical measuring principle, Shaft material: stainless steel, , Protection class IP65 on shaft side, -40…+85 °C, Max. 12000 rpm (continuous operation 6000), 10…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 1024 pulses per revolution
