RI20P1-QR20-LU4X2-H1141 Turck Industrial Automation Components

Name: RI20P1-QR20-LU4X2-H1141
Brand: Turck
Price: 165.7 USD
Availability: BackOrder

RI20P1-QR20-LU4X2-H1141 on Powermatic Associates

Part#:RI20P1-QR20-LU4X2-H1141

Alt. Part#:100000202

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

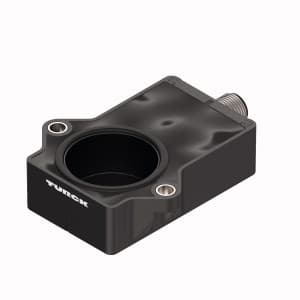

RI20P1-QR20-LU4X2-H1141 Turck - RI20P1-QR20-LU4X2-H1141 Miniature Encoder, With Analog Output, Premium Line

Product Details

Weight
100 g
RoHS
Yes
HTS Code
8536507000
Shaft diameter D [mm]
6 mm6.35 mm
Housing material
Plastic, Ultem
Construction size
71.6 x 62.6 x 20 mm
Electrical connection
Connector, M12 × 1
Output type
Absolute singleturn
Voltage output
0.5…4.5 V
Measuring range
-10…10°
Ambient temperature
-40…+85 °C
Encoder line
Premium-Line
Flange type
Flange without mounting element
Technology
Contactless
Output function
Analog output
Shaft Type
Blind hole shaft
Protection class
IP68/IP69K
Operating voltage
8…30 VDC
Country of Origin
Germany
Ambient Temperature
-40 degrees celsius, 85 degrees celsius

Operating Voltage

30 volts, 8 volts

Weight

100 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI20P1-QR20-LU4X2-H1141 on Powermatic Associates is $165.70. Order now.

About the product

Miniature Encoder, With Analog Output, Premium Line, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, , 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling
