RI240P1-QR20-LU4X2-0.15-DT04-3P Turck Industrial Automation Components

Name: RI240P1-QR20-LU4X2-0.15-DT04-3P
Brand: Turck
Price: 165.7 USD
Availability: BackOrder

RI240P1-QR20-LU4X2-0.15-DT04-3P on Powermatic Associates

Part#:RI240P1-QR20-LU4X2-0.15-DT04-3P

Alt. Part#:100000185

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

RI240P1-QR20-LU4X2-0.15-DT04-3P Turck - RI240P1-QR20-LU4X2-0.15-DT04-3P

Product Details

HTS Code
8536507000

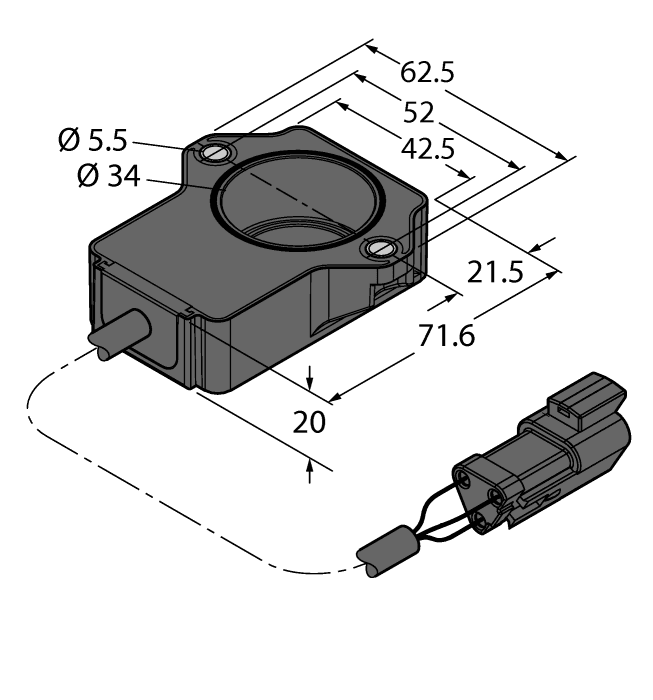

Construction size
71.6 x 62.6 x 20 mm
Electrical connection
Cable with connector, Deutsch DT04-3P
Operating voltage
8…30 VDC
Ambient temperature
-40…+85 °C
Output type
Absolute singleturn
Output function
Analog output
Shaft Type
Blind hole shaft
Technology
Contactless
Protection class
IP68/IP69K
Encoder line
Premium-Line
Voltage output
0.5…4.5 V
Shaft diameter D [mm]
6 mm6.35 mm
Housing material
Plastic, Ultem
Measuring range
-120…120°
Cable length (L)
0.220 m
Flange type
Flange without mounting element

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI240P1-QR20-LU4X2-0.15-DT04-3P on Powermatic Associates is $165.70. Order now.
