RI240P1-QR20-LU4X2-H1141 Turck Industrial Automation Components

RI240P1-QR20-LU4X2-H1141 on Powermatic Associates
Turck

Part#:RI240P1-QR20-LU4X2-H1141

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:100000207

Product Lifecycle:Active

Get a quick Quote!

RI240P1-QR20-LU4X2-H1141 Miniature Encoder, With Analog Output, Premium Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI240P1-QR20-LU4X2-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    101 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Country of Origin
    Germany
  • Weight
    101 grams
  • Operating Voltage
    30 volts, 8 volts
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius
  • Protection class
    IP68/IP69K
  • Voltage output
    0.5…4.5 V
  • Electrical connection
    Connector, M12 × 1
  • Housing material
    Plastic, Ultem
  • Output function
    Analog output
  • Ambient temperature
    -40…+85 °C
  • Flange type
    Flange without mounting element

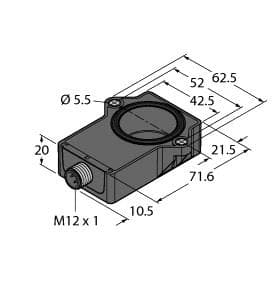

  • Construction size
    71.6 x 62.6 x 20 mm
  • Technology
    Contactless
  • Measuring range
    -120…120°
  • Output type
    Absolute singleturn
  • Encoder line
    Premium-Line
  • Operating voltage
    8…30 VDC
  • Shaft Type
    Blind hole shaft
  • Shaft diameter D [mm]
    6  mm6.35  mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


RI240P1-QR20-LU4X2-H1141 Description

Miniature Encoder, With Analog Output, Premium Line, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, , 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling



Related documents RI240P1-QR20-LU4X2-H1141 Specs

Manufacturer warranty

$165.70

Request a quote, and we will send availability within minutes.

Select Qty:

$165.70

$165.70 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support
