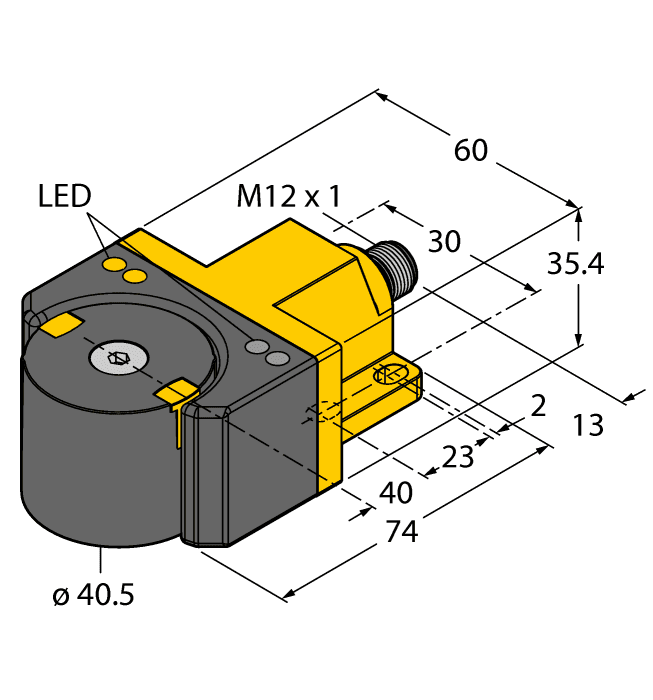

RI360P1-DSU35-2UP6X4-H1151 Turck Industrial Automation Components

GV2ME07

Schneider Electric

Schneider Electric GV2ME07 is a Motor Protection Circuit Breaker (MPCB) within the GV2ME sub-range, designed for thermal-magnetic motor protection and manual motor starting. It features 3 poles and provides protection functions against short-circuit and thermal overload. The rated current for this device is between 1.6 and 2.5 A, with a rated insulation voltage (Ui) of 690 V. It is designed for DIN rail mounting and has a net width of 45 mm. The operating mode is via a push-button, with protection settings for short-circuit pickup current fixed at 33.5A. The GV2ME07 has a rated impulse voltage (Uimp) of 6 kV and supports rated active power of 0.75 kW at 400/415Vac, 1.1 kW at 500Vac, and 1.5 kW at 690Vac. Its trip current rating is 2.5 AT, with a frame current rating of 32 AF. The mechanical durability of the device is rated at 100,000 operations at no load, and its electrical durability is rated at 100,000 operations with load (440Vac; AC-3; In/2). Connection to the circuit is made through screw-clamp terminals. The rated voltage (AC) phase-to-phase is 690 V, with all three poles protected. The minimum and maximum currents are 1.6 A and 2.5 A, respectively, and the trip unit type is thermal-magnetic. It is categorized under utilization category A AC-3.
