RI60P2-QR20-LU4X2-H1141 Turck Industrial Automation Components
Part#:RI60P2-QR20-LU4X2-H1141
Alt. Part#:100001899
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

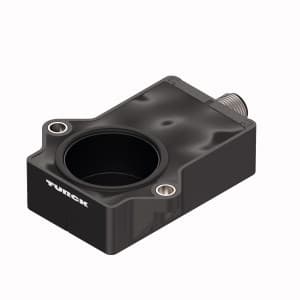

RI60P2-QR20-LU4X2-H1141 Turck - RI60P2-QR20-LU4X2-H1141 Miniature Encoder, With Analog Output, Premium Line
Product Details
- Weight 1000 g
- RoHS Yes
- Country Of Origin DEU
- HTS Code 8536507000
- Encoder line Premium-Line
- Housing material Plastic, Ultem
- Output type Absolute singleturn
- Electrical connection Connector, M12 × 1
- Operating voltage 8…30 VDC
- Ambient temperature -40…+85 °C

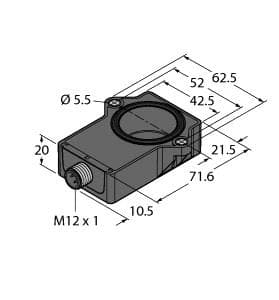

- Construction size 71.6 x 62.6 x 20 mm
- Protection class IP68/IP69K
- Flange type Flange without mounting element
- Shaft Type Blind hole shaft
- Shaft diameter D [mm] 6 mm6.35 mm
- Output function Analog output
- Measuring range -30…30°
- Voltage output 0.5…4.5 V
- Technology Contactless
- Country of Origin Germany
- Operating Voltage 30 volts, 8 volts
- Ambient Temperature -40 degrees celsius, 85 degrees celsius
- Weight 1000 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI60P2-QR20-LU4X2-H1141 on Powermatic Associates is $165.70. Order now.
About the product
Miniature Encoder, With Analog Output, Premium Line, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P2-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, , 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling
RI60P2-QR20-LU4X2-H1141 Related Documents
Similar products from: Turck Industrial Automation Components
Manufacturer warranty
RI60P2-QR20-LU4X2-H1141 Turck
$165.70
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$165.70
$165.70 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare RI60P2-QR20-LU4X2-H1141 with other Industrial Automation Components products
Weight
RoHS
Country Of Origin
HTS Code
Encoder line
Housing material
Output type
Electrical connection
Operating voltage
Ambient temperature
Selected product
RI60P2-QR20-LU4X2-H1141
Turck
RI60P2-QR20-LU4X2-H1141 Turck - RI60P2-QR20-LU4X2-H1141 Miniature Encoder, With Analog Output, Premi...
Weight1000 g
RoHSYes
Country Of OriginDEU
HTS Code8536507000
Encoder linePremium-Line
Housing materialPlastic, Ultem
Output typeAbsolute singleturn
Electrical connectionConnector, M12 × 1
Operating voltage8…30 VDC
Ambient temperature-40…+85 °C
NI10U-QP08-AP6X2
Turck
NI10U-QP08-AP6X2 Turck - NI10U-QP08-AP6X2 Inductive Sensor, With Extended Switching Distance
Weight34 g
RoHSYes
Country Of OriginCHE
HTS Code8536507000
Encoder line-
Housing material-
Output type-
Electrical connection-
Operating voltage10…30 VDC
Ambient temperature-
Weight75 g
RoHS-
Country Of OriginDEU
HTS Code9032896085
Encoder linePremium-Line
Housing material-
Output type-
Electrical connection-
Operating voltage-
Ambient temperature-
About the manufacturer
Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
