RU20L-Q12S-UP8X-V1141 Turck Industrial Automation Components

Name: RU20L-Q12S-UP8X-V1141
Brand: Turck
Price: 308.1 USD
Availability: BackOrder

RU20L-Q12S-UP8X-V1141 on Powermatic Associates

Part#:RU20L-Q12S-UP8X-V1141

Alt. Part#:100005608

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

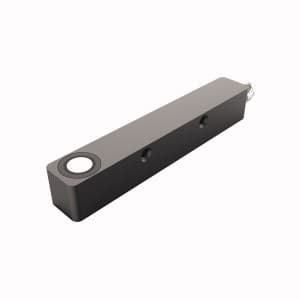

RU20L-Q12S-UP8X-V1141 Turck - RU20L-Q12S-UP8X-V1141 Ultrasonic Sensor, Retroreflective Sensor

Product Details

Weight
33 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
8536507000
Radiation direction
side
Electrical connection
Connector, M8 × 1
Switching element function
NO/NC
Ambient temperature
-10…+70 °C
Range
20…200 mm
Housing surface
Anodized
Construction size
82 x 12 x 12 mm, Q12
Operating voltage
18…30 VDC
Design
Rectangular
Housing quality
AL
Communication protocol
IO-Link
Output function
PNP
Special features
Compact
Function
Retroreflective
Protection class
IP67
Housing material
Metal

Country of Origin

Germany

Weight

33 grams

Operating Voltage

18 volts, 30 volts

Ambient Temperature

-25 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RU20L-Q12S-UP8X-V1141 on Powermatic Associates is $308.10. Order now.

About the product

Ultrasonic Sensor, Retroreflective Sensor, Max. range 200 mm, Smooth sonic transducer face, Rectangular housing Q12S, potted, Lateral light emission, Connection via M8 × 1 male connector, Teach range adjustable via connection cable or via IO-Link, Blind zone: 2 cm, Range: 20 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±9 °, Switching output, PNP, NO/NC programmable, IO-Link
