RU20U-M12-AP6X2-H1141 Turck Industrial Automation Components

Name: RU20U-M12-AP6X2-H1141
Brand: Turck
Price: 374.1 USD
Availability: BackOrder

RU20U-M12-AP6X2-H1141 on Powermatic Associates

Part#:RU20U-M12-AP6X2-H1141

Alt. Part#:100000278

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

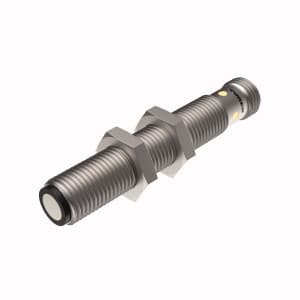

RU20U-M12-AP6X2-H1141 Turck - RU20U-M12-AP6X2-H1141 Ultrasonic Sensor, Diffuse Mode Sensor

Product Details

Weight
45 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
8536507000
Operating voltage
10…30 VDC
Radiation direction
straight
Housing surface
Chrome-plated
Output function
PNP
Electrical connection
Connector, M12 × 1
Housing material
Metal
Design
Threaded barrel
Housing quality
CuZn
Range
25…200 mm
Communication protocol
IO-Link
Function
Proximity
Switching element function
NO/NC
Protection class
IP67
Construction size
M12 x 1
Ambient temperature
-10…+60 °C
Country of Origin
Germany

Weight

45 grams

Ambient Temperature

-10 degrees celsius, 60 degrees celsius

Operating Voltage

10 volts, 30 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RU20U-M12-AP6X2-H1141 on Powermatic Associates is $374.10. Order now.

About the product

Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 200 mm, Smooth sonic transducer face, Cylindrical housing M12, potted, Connection via M12 × 1 male connector, Teach range adjustable via connection cable, Blind zone: 2.5 cm, Range: 20 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±9 °, Switching output, PNP, programmable via IO-Link, NO/NC programmable, IO-Link
