WK 4.4T-4/SV Turck Industrial Automation Components

WK 4.4T-4/SV on Powermatic Associates
Turck
  • WK 4.4T-4/SV
  • WK 4.4T-4/SV

Part#:WK 4.4T-4/SV

Alt. Part#:U0907-37

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

WK 4.4T-4/SV Turck - WK 4.4T-4/SV

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090
  • Number of Conductors
    4
  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Material coupling/housing A
    Brass
  • Cable Jacket Material
    PVC
  • Cable Jacket Color
    Gray
  • Connector A - Style
    Right angle, Female
  • Voltage
    250 V
  • Cable length (L)
    4.0  m
  • Connector A
    M12 × 1
  • Connector A - Number of Pins
    4
  • Current
    4 A
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WK 4.4T-4/SV on Powermatic Associates is $29.00. Order now.

About the product

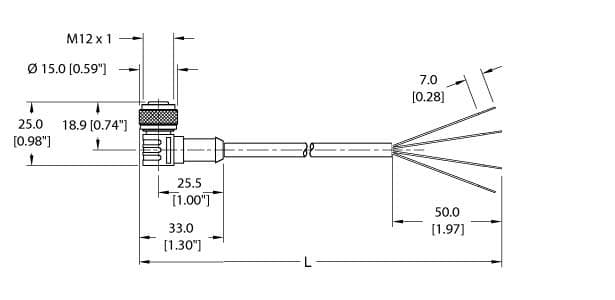

Turck WK 4.4T-4/SV is a cable designed with a nickel-plated brass coupling nut and a TPE jacket, ensuring a degree of protection rated at IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. This cable measures 4 meters in length and features a right-angled 4-pin M12 eurofast female connector with a T-barb fitting to bare end flying leads. It has a cross-section of 4 x #22AWG and is capable of handling a rated current of 4A. The cable's sheath has an outer diameter of 5.3mm and is rated for 250Vac. It comes in a gray sheath with BN/WH/BU/BK wires, designed for a 4-wire circuit configuration. This product is specifically packaged for use in vending machines and functions as a single-ended mating cable or cordset, belonging to the M12 eurofast to bare leads sub-range.
