WS 4.4T-4 Turck Industrial Automation Components

Name: WS 4.4T-4
Brand: Turck
Price: 29 USD
Availability: BackOrder

Part#:WS 4.4T-4

Alt. Part#:U2507

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

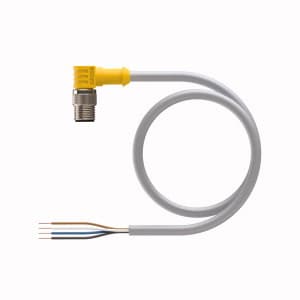

WS 4.4T-4 Turck - WS 4.4T-4 Actuator and Sensor Cordset, Connection Cable

Product Details

RoHS
Yes
Country Of Origin
MEX
HTS Code
8544429090
Connector A
M12 × 1
Voltage
250 volts
Cable Jacket Color
Gray
Material coupling/housing A
Brass
Cable Jacket Material
PVC
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Number of Conductors
4
Connector A - Number of Pins
4
Cable length (L)
4.0 m
Application
Actuator and Sensor
Current
4 amperes
Connector A - Style
Right angle, Male
Length
4.0 meters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WS 4.4T-4 on Powermatic Associates is $29.00. Order now.

About the product

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 4 m, M12, Male, Right angle, 4-pin, IP68, IP69K, Instrumentation Tray Cable, Gray PVC jacket, 4X22 AWG, Sunlight Resistant, -40 Cold Bend Rating, Oil Resistant, Flame Ratings: UL 1685 FT4, UL1061, CSA FT4, Flexlife® and C-Track Approved, Cable length: 4 m
