222-412 WAGO Industrial Automation Components

Name: 222-412
Brand: WAGO

Part#:222-412

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

350 in stock

Aug 2, 2025

Product description

222-412 WAGO - Splicing connector; 2-conductor; with operating levers; gray housing

Product Details

Conductor Material
Copper
Weight
3.053 grams
Depth
0.807 inches, 20.5 millimeters
Actuator
Lever
Strip Length
0.39 inches, 10 millimeters
Height
0.571 inches, 14.5 millimeters
Flammability Class
V0
Color
Gray
Package Type
Box
Current
32 amperes
Conductor Size
12 american wire gauge, 2.5 millimeters
Country of Origin
Germany
Width
0.488 inches, 12.4 millimeters
Operating Temperature
85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Similar products from: WAGO Industrial Automation Components

2204-1407

WAGO

2204-1407 WAGO - TOPJOB®S ground terminal block with Push-buttons; rail mount; 4-conductor; 6.2 mm wide; green-yellow

114 in stock

2202-2701

WAGO

2202-2701 WAGO - TOPJOB®S double-deck terminal block with push-buttons; through/through (L/L); rail mount; without marker carrier; 2-conductor; 5.2 mm wide; gray;

132 in stock

870-519

WAGO

870-519 WAGO - End and intermediate plate; 2.0 mm thick; Orange

228 in stock

264-331

WAGO

264-331 WAGO - 4-conductor end terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray

24 in stock

260-361

WAGO

260-361 WAGO - End plate; with fixing flange; gray

3 in stock

216-201

WAGO

216-201 WAGO - Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white

370 in stock

Manufacturer warranty

222-412 WAGO

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

350

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 222-412 with other Industrial Automation Components products

Conductor Material

Weight

Depth

Actuator

Strip Length

Height

Flammability Class

Color

Package Type

Current

Selected product

350 in stock

WAGO

222-412 WAGO - Splicing connector; 2-conductor; with operating levers; gray housing

Conductor MaterialCopper

Weight3.053 grams

Depth0.807 inches, 20.5 millimete...

ActuatorLever

Strip Length0.39 inches, 10 millimeters

Height0.571 inches, 14.5 millimete...

Flammability ClassV0

ColorGray

Package TypeBox

Current32 amperes

2 in stock

WAGO

769-101 WAGO - 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 1-pole; coding fi...

Conductor MaterialCopper

Weight-

Depth0.72 inches, 18.3 millimeter...

ActuatorOperating Tool

Strip Length0.35 inches, 9 millimeters

Height1.78 inches, 45.2 millimeter...

Flammability ClassV0

ColorGray

Package TypeBox

Current32 amperes

4 in stock

WAGO

769-103 WAGO - 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 3-pole; coding fi...

Conductor MaterialCopper

Weight-

Depth0.72 inches, 18.3 millimeter...

ActuatorOperating Tool

Strip Length0.35 inches, 9 millimeters

Height1.78 inches, 45.2 millimeter...

Flammability ClassV0

ColorGray

Package TypeBox

Current32 amperes

About the manufacturer

Powermatic Associates is an authorized WAGO distributor, proud to offer a diverse range of high-quality and innovative industrial automation solutions. As a leading manufacturer, WAGO excels in designing and producing cutting-edge electrical interconnection, automation, and interface electronics technologies. Powermatic Associates leverages WAGO's expertise to provide customers with top-of-the-lin...

Recently viewed products

MDI1PRL17B4-EQ

Novanta IMS

Novanta IMS MDI1PRL17B4-EQ is a stepper motor designed with an integrated driver and operates as a 2-phase DC stepper motor. It features an external single-end 512-line optical encoder and is constructed with a double motor stack in the Plus version, which includes standard features. The connection is facilitated through a non-locking spring-clamp connector and a 10-pin friction-lock wire crimp connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a supply voltage range of 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is designed for mounting with a 42x42mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI1PRL17B4-EQ offers a degree of protection rated at IP20, has a moment of inertia of 0.057kg.cm^2, and provides a stall torque of 42N.cm. Its resolution is defined by a 1.8° step angle.

0 in stock

M-2218-3.0ES500

Novanta IMS

Novanta IMS M-2218-3.0ES500 is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a 500-line single-end optical encoder with an index mark and a smooth shaft with a single flat (single shaft end) single (1) motor stack. It is designed with bare end flying leads for connection, operates on a rated current of 3A, and supports a supply voltage range of 24Vdc-75Vdc, including 48Vdc, 60Vdc, and 72Vdc options. This stepper motor is equipped with a 57x57mm flange for mounting, can operate in ambient air temperatures ranging from -25 to +40°C, and has a moment of inertia of 0.12kg.cm^2. It delivers a stall torque of 71N.cm (100oz-in) and can be stored in temperatures ranging from -25 to +70°C. The motor offers a resolution of 1.8° step angle.

0 in stock

HOM2175SB

Schneider Electric

Square D by Schneider Electric HOM2175SB is a load center designed for use with a secondary surge arrestor. It has a rated current of 5A and operates at a rated voltage of 120Vac/240Vac. This load center is protected by a NEMA 1 enclosure and is suitable for single-phase (1PH) electrical networks.

0 in stock

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

0 in stock

M32-1

Mencom

M32 Male Thread, To, 1.0-NPT Female Thread, Adapter

0 in stock

RSM WKM 126-6M

Turck

RSM WKM 126-6M Turck - RSM WKM 126-6M Actuator and Sensor Cordset, Extension Cordset

0 in stock

MDI1PRL17B4-EQ

Novanta IMS

0 in stock

M-2218-3.0ES500

Novanta IMS

0 in stock

MDI1PRL17B4-EQ

Novanta IMS

0 in stock

M-2218-3.0ES500

Novanta IMS

0 in stock

Relevant products

222-500

Verified stock: 0

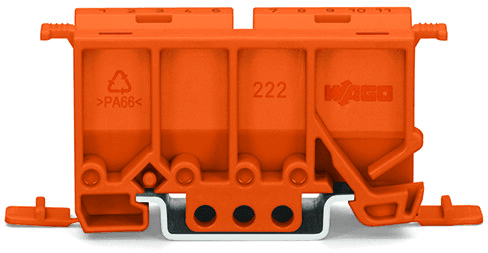

222-500 WAGO - Mounting carrier; for 222 series splicing connectors; orange

WAGO

222-510

Verified stock: 0

222-510 WAGO - Angled DIN-rail adapter; for 221-500 or 222-500 mounting carrier; gray

WAGO

222-505

Verified stock: 0

222-505 WAGO - Strain relief plate; for 221-500 or 222-500 mounting carrier; snap on; orange

WAGO

222-415

Verified stock: 0

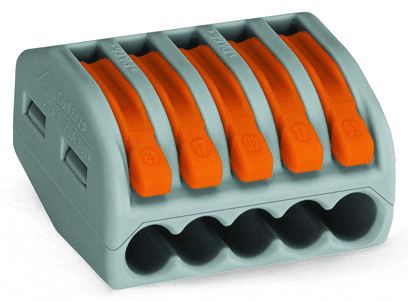

222-415 WAGO - Splicing connector; 5-conductor; with operating levers; gray housing

WAGO

222-413

Verified stock: 0

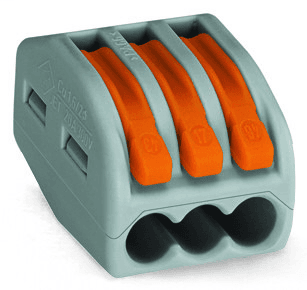

222-413 WAGO - Splicing connector; 3-conductor; with operating levers; gray housing
