231-2304/026-000 WAGO Industrial Automation Components

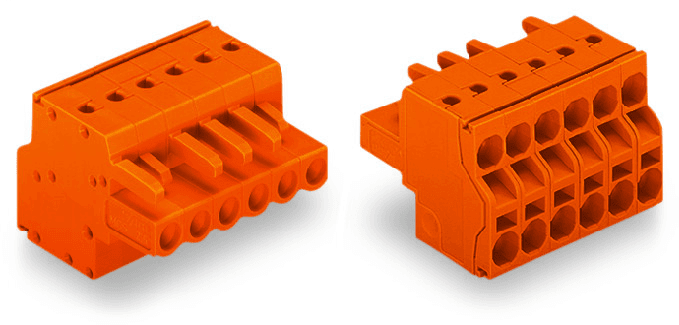

WAGO 231-2304/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed for use in applications as specified by DIN EN 61984, indicating that these connectors do not have breaking capacity and should not be connected or disconnected under load or when live. It adheres to electrical ratings per IEC/EN 60664-1, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 16A. UL and CSA approvals are included, with UL ratings of up to 600V and 20A, and CSA ratings up to 300V and 15A, varying by use group. The connector features 8 connection points, 4 poles, and utilizes Push-in CAGE CLAMP technology for secure connections with solid or fine-stranded conductors ranging from 0.2 to 2.5mm2. It has a pin spacing of 5.08mm, dimensions of 20.16mm in width, 20.8mm in height, and 26.45mm in depth, and is made from Polyamide (PA66) with a flammability class of UL94 V0. The connector is orange, has a tin contact plating on copper alloy contacts, and includes features such as variable coding and anti-rotation protection. It operates within a temperature range of -60 to +85°C and is RoHS compliant without exemptions. The product is packaged in boxes of 100 pieces, with a GTIN of 4044918564427 and a customs tariff number of 85366990990, indicating its country of origin as Poland.
