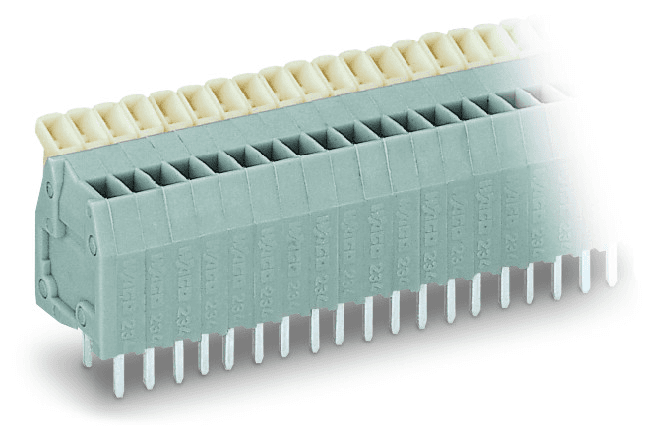

234-210 WAGO Industrial Automation Components

WAGO 234-210 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It has a nominal voltage of 63V (III/3), rated impulse voltage of 2.5kV (III/3), rated voltage of 160V (III/2), rated impulse voltage of 2.5kV (III/2), nominal voltage of 320V (II/2), rated surge voltage of 2.5kV (II/2), and a rated current of 6A as per IEC/EN standards. Under UL 1059 approvals, it has a rated voltage of 150V and a rated current of 4A for Use Group B. Similarly, CSA approvals indicate a rated voltage of 150V and a rated current of 4A for Use Group B. The part features 10 connection points, a single connection type with CAGE CLAMP technology, push-button actuation, and accommodates solid and fine-stranded conductors ranging from 0.08 to 0.5mm2 (28 to 20 AWG), including fine-stranded conductors with both insulated and uninsulated ferrules of 0.25mm2. The strip length for connections is between 5 and 6mm, with a conductor connection direction to PCB at 90 degrees and a pole number of 10. Physically, it has a pin spacing of 2.5mm, a width of 27.2mm, a height of 18mm, a height from the surface of 14mm, a depth of 14.4mm, solder pin length of 4mm, solder pin dimensions of 0.5 x 0.75mm, and a drilled hole diameter with tolerance of 1.1 (+0.1)mm. It uses THT PCB contact, in-line solder pin arrangement, and two solder pins per potential. The part is gray, made from Polyamide (PA66) with a flammability class of V0, chrome-nickel spring steel (CrNi) for the clamping spring, electrolytic copper (ECu) for contact material, and tin for contact plating. It has a fire load of 0.084MJ and weighs 5.1g. It operates within a temperature range of -60 to +105°C, is RoHS compliant without exemption, and comes in a box packaging of 180 pieces per unit (45 pieces per SPU). The country of origin is CH, with a GTIN of 4044918651561 and a customs tariff number of 85369010000.
