262-239 WAGO Industrial Automation Components
Part#:262-239
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

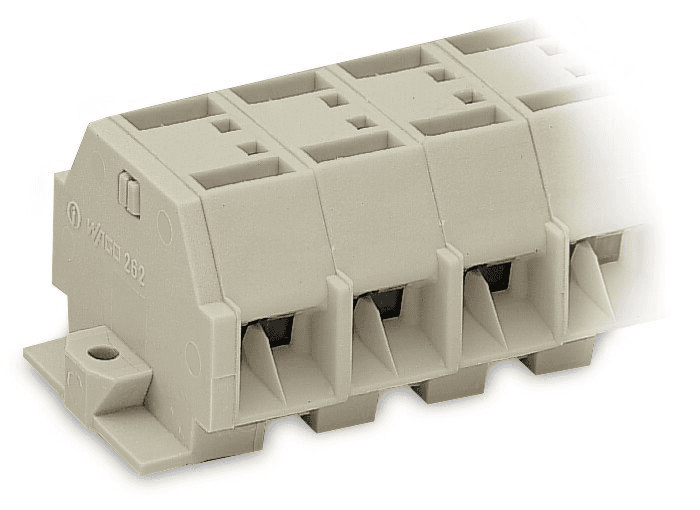

262-239 WAGO - 4-conductor terminal strip; without push-buttons; suitable for Ex e II applications; with fixing flanges; 9-pole; Fixing hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®; 4,00 mm²; light gray
Product Details
- Weight 65.83801732 g
- Country Of Origin Germany
- HTS Code 85369010000
- Country of Origin Germany
- Color Gray
- Weight 65.838 grams
- Actuator Operating Tool
- Strip Length 0.39 inches, 10 millimeters
- Depth 1.319 inches, 33.5 millimeters
- Conductor Material Copper
- Width 122.5 millimeters, 4.823 inches
- Insulation Material Polyamide
- Mounting Type Mounting Flange
- Package Type Box
- Flammability Class V0
- Conductor Size 12 american wire gauge, 4 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 262-239 on Powermatic Associates is $20.55. Order now.
About the product
Wago 262-239 is a terminal strip designed for feed-through applications, featuring CAGE-CLAMP spring connections for secure and maintenance-free connections. It is rated for (Ex e II) 30A and is suitable for Ex e II applications, indicating its capability for use in potentially explosive atmospheres. This 1-deck terminal strip accommodates a net width of 9 feed-through poles (9P) and is designed for use with 0.5mm^2 to 4mm^2 fine stranded or solid conductors, as well as #20AWG to #12AWG fine stranded or solid conductors. The product is made from Polyamide (PA) 66 and halogen-free materials, ensuring durability and safety. It features 36-wires (18 clamps + 18 clamps) (18+18) for connections, with a rated voltage of (Ex e II) 550 V. The terminal strip has a control voltage (AC) with a 3.2mm fixing hole and comes in light gray. Its dimensions are H23.1mm x W122.5mm x D33.5mm, making it compact and easy to install in various configurations.
