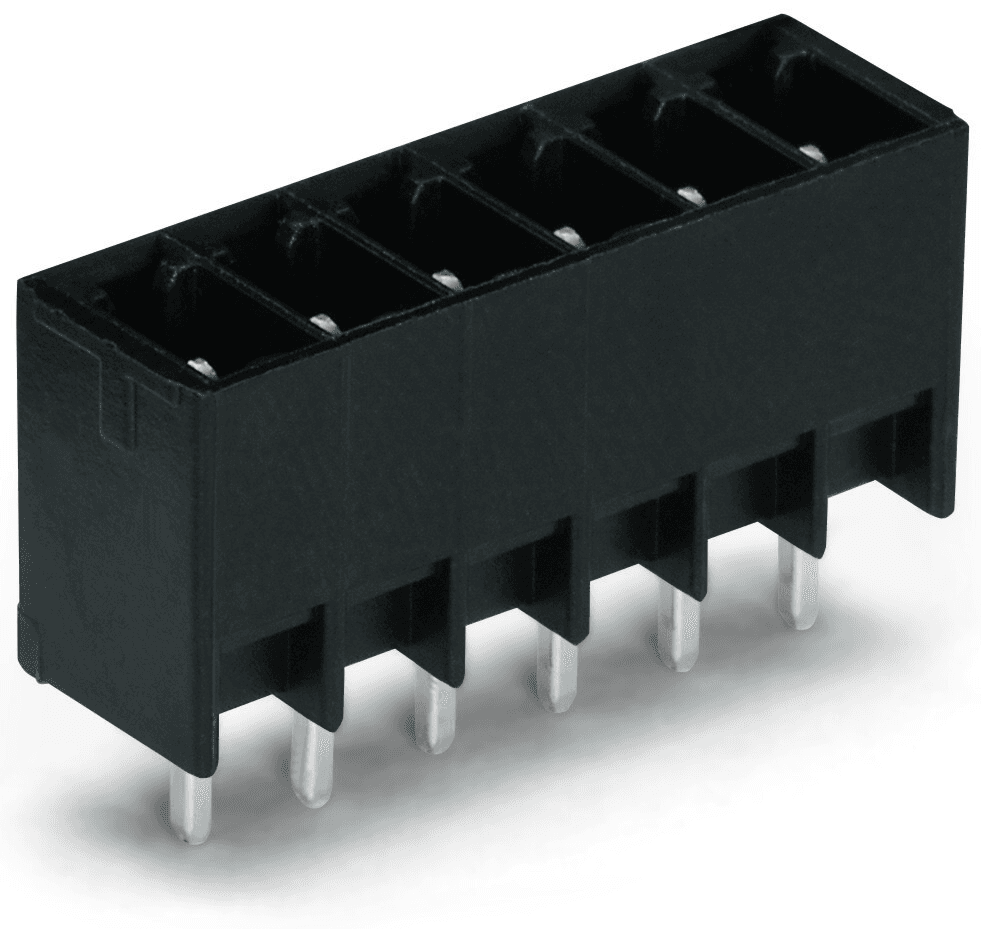

714-142 WAGO Industrial Automation Components

WAGO 714-142 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with a nominal voltage of 160V for overvoltage category III/ pollution degree 3 and 2, and 320V for category II/ pollution degree 2, both with a rated impulse voltage of 2.5kV and a rated current of 8A. UL 1059 approvals are present, with a rated voltage of 150V and a rated current of 8A for Use Group B. This part features 12 potentials, a single connection type, and one level, with a 12 pole number for connection 1. Physical specifications include a pin spacing of 3.5mm, dimensions of 43.4mm in width, 13.1mm in height, 6.9mm in depth, and a solder pin length of 3.4mm. It offers variable coding, anti-rotation protection, and is designed as a male connector/plug for PCB with a 90° mating direction. The connector is made from black Polyphthalamide (PPA GF) with a UL94 V0 flammability class, electrolytic copper contacts with tin plating, and weighs 2.5g. It operates within a temperature range of -60 to +100°C, with a processing temperature range of -35 to +60°C. Packaged in boxes of 100 pieces, it is RoHS compliant without exemptions, has a GTIN of 4045454858896, and a customs tariff number of 85366930000, indicating its origin is DE.
