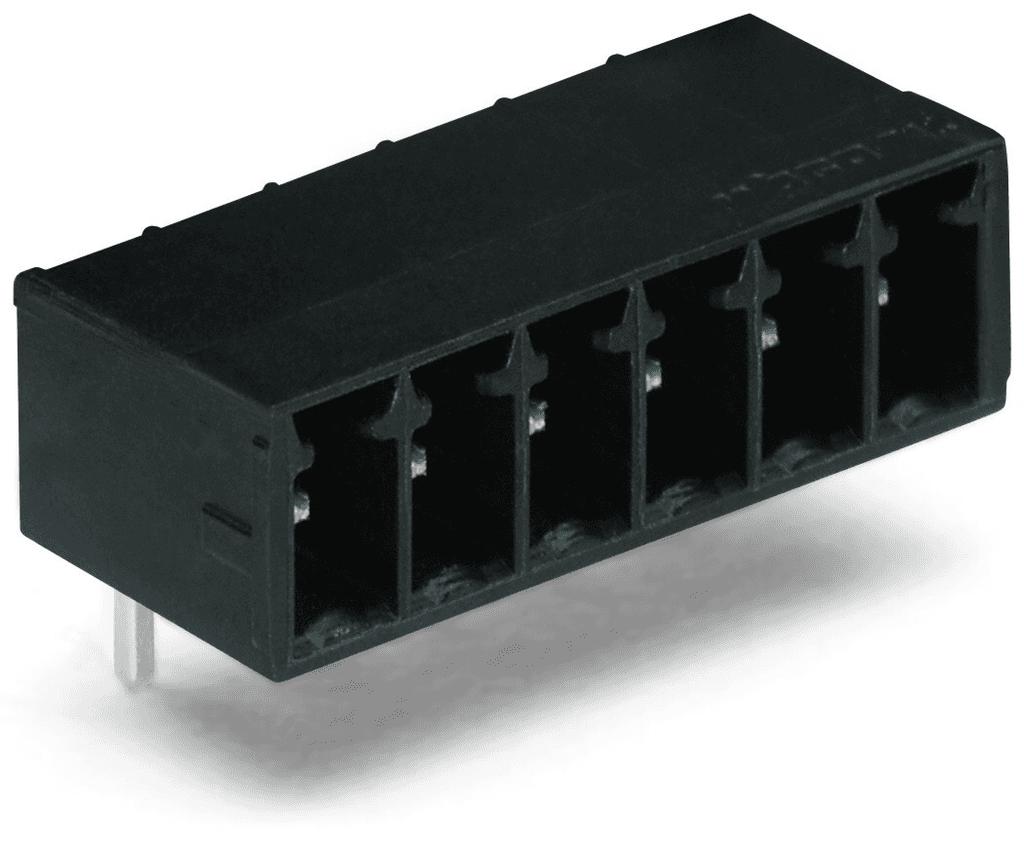

WAGO 714-170 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed for PCB applications without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 160V in overvoltage category III/3 and 320V in category II/2, both with a rated impulse voltage of 2.5kV and a rated current of 8A. UL ratings include a voltage of 150V and a current of 8A under Use Group B. This connector features 10 potentials, a single connection type across one level, and a 10-pole male connector/plug configuration. Physical specifications include a 3.5mm pin spacing, dimensions of 36.4mm in width, 10.3mm in height, 9.7mm in depth, with a solder pin length of 3.4mm and dimensions of 0.8 x 0.8mm. It offers variable coding, anti-rotation protection, and is designed for THT PCB contact with a mating direction to the PCB of 0°. The connector is made from black Polyphthalamide (PPA GF) with a UL94 V0 flammability class, electrolytic copper contacts with tin plating, and weighs 2.2g. It operates within a temperature range of -60 to +100°C and is RoHS compliant without exemptions. Packaged in boxes of 100 pieces, it is manufactured in Germany with a GTIN of 4045454859718 and a customs tariff number of 85366930000.
