714-145 WAGO Industrial Automation Components

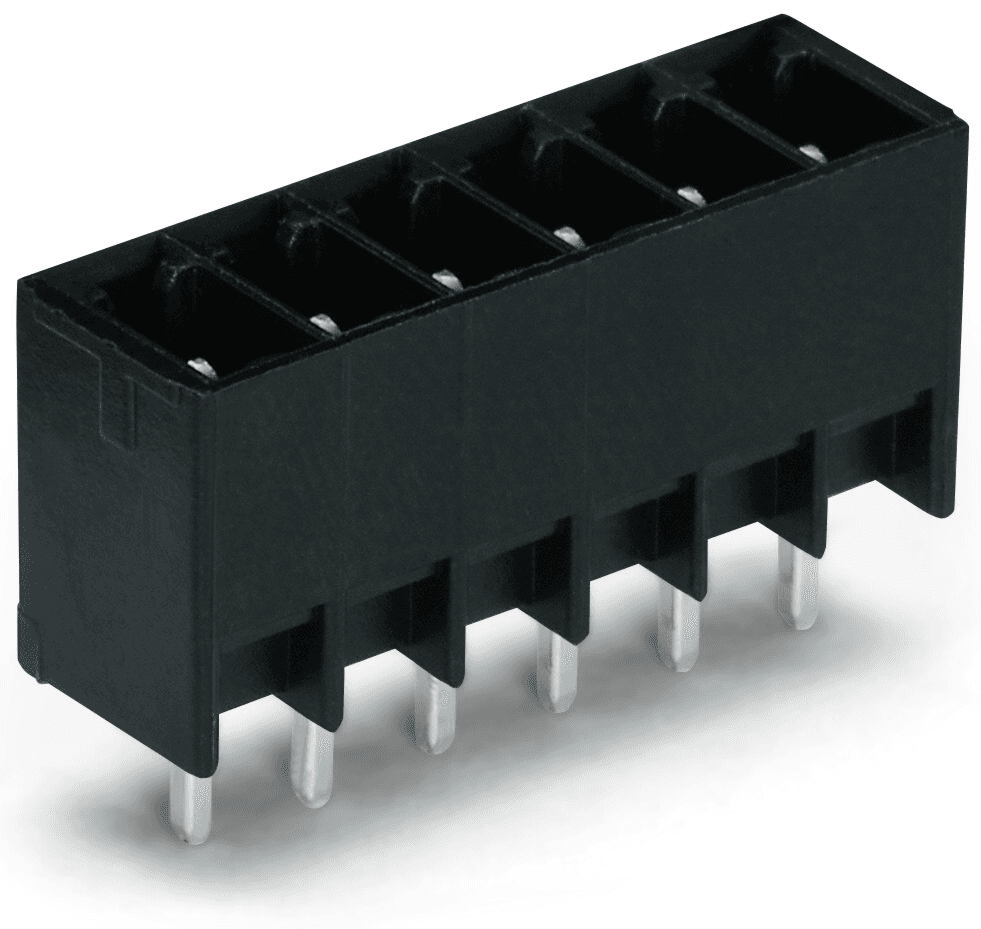

WAGO 714-145 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal and rated voltages of 160V and 320V under different conditions, and a rated impulse voltage of 2.5kV. The rated current is 8A. This part is UL 1059 approved, with a UL rated voltage of 150V and a rated current of 8A for Use Group B. It features 15 potentials, a single connection type, and one level, with a pole number of 15 for Connection 1. The physical specifications include a pin spacing of 3.5mm, dimensions of 53.9mm in width, 13.1mm in height, 6.9mm in depth, and a solder pin length of 3.4mm. It offers variable coding, anti-rotation protection, and is designed as a male connector/plug for PCB with a 90-degree mating direction. The connector is made from black Polyphthalamide (PPA GF) with a flammability class of UL94 V0, and the contacts are made from Electrolytic Copper (ECu) with tin plating. It operates within a temperature range of -60 to +100°C and has a processing temperature range of -35 to +60°C. Packaged in boxes of 100 pieces, it is RoHS compliant without exemptions, has a GTIN of 4045454858940, and is manufactured in Germany with a customs tariff number of 85366930000.
