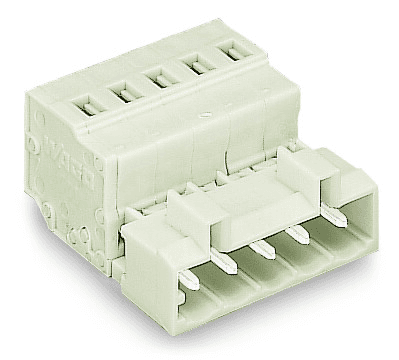

721-607/000-044 WAGO Electrical Connector Accessories

WAGO 721-607/000-044 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are included, with ratings per UL 1059 and CSA standards, featuring rated voltages up to 600V and rated currents up to 15A depending on the use group. This connector has 7 connection points, supports a single connection type with CAGE CLAMP technology, and accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2. The physical dimensions include a pin spacing of 5mm, width of 38.2mm, height of 14.3mm, and depth of 27.5mm. It offers variable coding, anti-rotation protection, and is made from light gray Polyamide (PA66) with a flammability class of UL94 V0. The contact material is Electrolytic Copper with tin plating. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 50 pieces, with the country of origin being Germany (DE) and a GTIN of 4044918582360.
