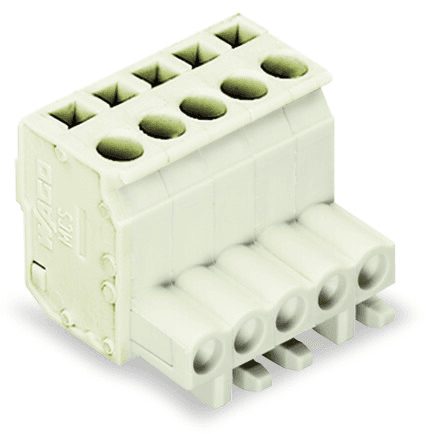

722-105/026-000 WAGO Electrical Connector Accessories

WAGO 722-105/026-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating that these connectors should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 14A. UL and CSA approvals are included, with ratings per UL 1059 and CSA standards, featuring rated voltages up to 600V and rated currents up to 15A under various use groups. This part offers 5 connection points, supports a single connection type with CAGE CLAMP technology, and accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including options for ferrules. The physical dimensions include a pin spacing of 5mm, width of 27.4mm, height of 23.9mm, and depth of 22.75mm, with an angled design, variable coding, and anti-rotation protection. The female connector/socket is made from light gray Polyamide (PA66), with a flammability class of UL94 V0, and uses a tin-plated copper alloy for contacts. It operates within a temperature range of -60 to +85°C, has a fire load of 0.009MJ, and weighs 9.6g. This product is RoHS compliant, packaged in boxes of 100 pieces, and has a country of origin of PL.
