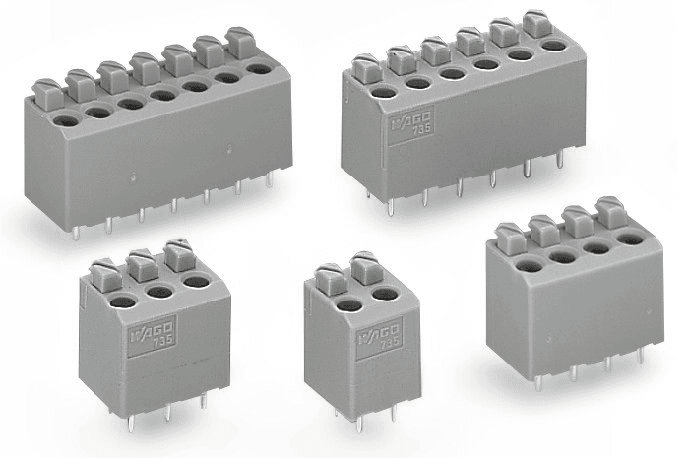

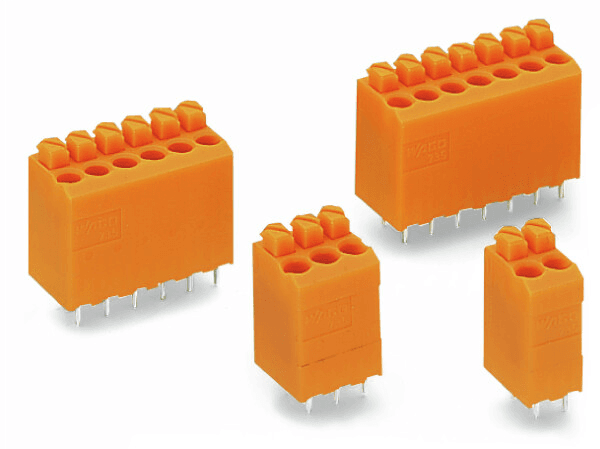

735-304 WAGO Industrial Automation Components

WAGO 735-304 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 320V, rated impulse voltage (III/3) of 4kV, rated voltage (III/2) of 320V, rated impulse voltage (III/2) of 4kV, nominal voltage (II/2) of 630V, rated surge voltage (II/2) of 4kV, and a rated current of 10A. It has UL 1059 approval with rated voltages of 300V and rated currents of 10A for both Use Group B and D, as well as CSA approval with the same rated voltages and currents for Use Group B and D. The part features 4 connection points, a total of 4 potentials, 1 connection type, and 1 level. The PUSH WIRE connection technology is actuated by a push-button and accommodates solid conductors of 0.5...1.5mm2 / 20...16 AWG, fine-stranded conductors with insulated or uninsulated ferrules of 0.5...1mm2, and has a strip length of 8...9mm / 0.31...0.35" with a conductor connection direction to PCB of 90°. It has a pole number of 4, pin spacing of 5mm / 0.197", dimensions of 20mm width, 19.4mm height, 15.9mm height from the surface, and 10.8mm depth. The solder pin length is 3.5mm with dimensions of 0.4 x 0.9mm and a drilled hole diameter with tolerance of 1 (+0.1)mm. It supports plugging without loss of pin spacing, THT PCB contact, in-line solder pin arrangement, and 2 solder pins per potential. The part is gray, made from Polyamide (PA66) with a flammability class of UL94 V0, chrome-nickel spring steel (CrNi) clamping spring, electrolytic copper (ECu) contact material with tin plating, and has a fire load of 0.053MJ and weight of 3.4g. It operates within a temperature range of -60...+105°C, is RoHS compliant without exemption, and comes in a box packaging of 240 (60) pcs per box, with a country of origin of CH, GTIN of 4044918793070, and customs tariff number of 85369010000.
