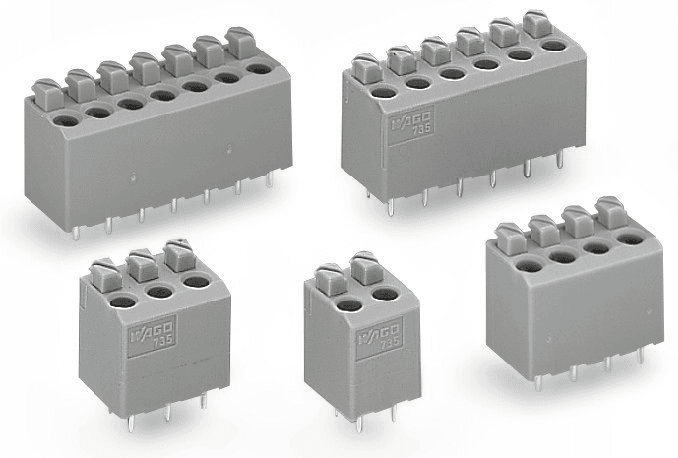

735-306 WAGO Industrial Automation Components

WAGO 735-306 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 320V, rated impulse voltage (III/3) of 4kV, rated voltage (III/2) of 320V, rated impulse voltage (III/2) of 4kV, nominal voltage (II/2) of 630V, rated surge voltage (II/2) of 4kV, and a rated current of 10A. It has UL 1059 approval with rated voltages of 300V and rated currents of 10A for both Use Group B and D, as well as CSA approval with identical ratings for voltage and current. The part features 6 connection points, a single connection type, and one level, utilizing PUSH WIRE connection technology with push-button actuation. It accommodates solid conductors of 0.5...1.5mm2 / 20...16 AWG, fine-stranded conductors with or without insulated ferrules of 0.5...1mm2, and has a strip length of 8...9mm / 0.31...0.35". The conductor connection direction to PCB is 90° with a pole number of 6. Physical specifications include a pin spacing of 5mm / 0.197", width of 30mm / 1.181", height of 19.4mm / 0.764", height from the surface of 15.9mm / 0.626", depth of 10.8mm / 0.425", solder pin length of 3.5mm, solder pin dimensions of 0.4 x 0.9mm, and a drilled hole diameter with tolerance of 1 (+0.1)mm. It supports plugging without loss of pin spacing, THT PCB contact, in-line solder pin arrangement, and two solder pins per potential. The part is gray, made from Polyamide (PA66) with a flammability class of UL94 V0, chrome-nickel spring steel (CrNi) clamping spring, electrolytic copper (ECu) contact material with tin plating, and has a fire load of 0.079MJ and weight of 5g. It operates within a temperature range of -60...+105°C, is RoHS compliant without exemption, and comes in a box packaging of 160 (40) pieces per unit, with a country of origin of CH and a GTIN of 4044918793124.
