736-116 WAGO Industrial Automation Components

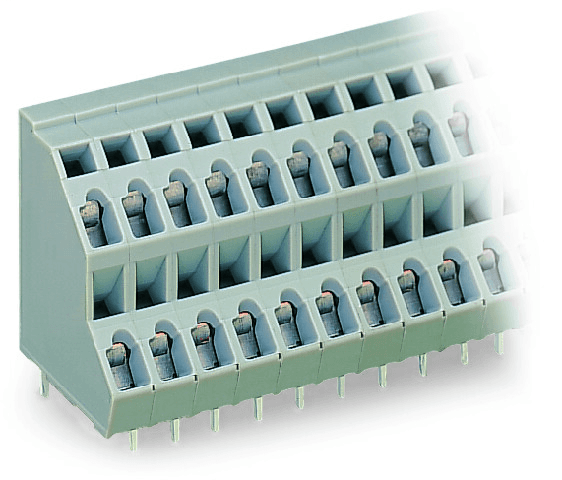

WAGO 736-116 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN, including nominal voltages of 250V (III/3), 320V (III/2), and 630V (II/2), all with a rated impulse voltage of 4kV. It has a rated current of 21A and complies with overvoltage category III / Pollution degree 2. This part is also rated per UL 1059 with a rated voltage of 300V and a rated current of 10A for both Use Group B and D, and it meets CSA standards with identical voltage and current ratings for Use Groups B and D. It features 32 connection points, a single connection type with CAGE CLAMP technology, and supports conductor sizes from 0.08 to 2.5mm2 / 28 to 12 AWG. The part has a two-level design, with a pole number of 32, and is designed for PCBs with a THT contact type and in-line solder pin arrangement. It is made from gray Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel for the clamping spring and Electrolytic Copper with tin plating for contacts. The part operates within a temperature range of -60 to +105°C, weighs 36.7g, and has dimensions of 81mm in width, 30.5mm in height, and 21mm in depth. It is RoHS compliant without exemptions, packaged in boxes of 21 pieces, and has a country of origin of PL.
