736-562 WAGO Industrial Automation Components

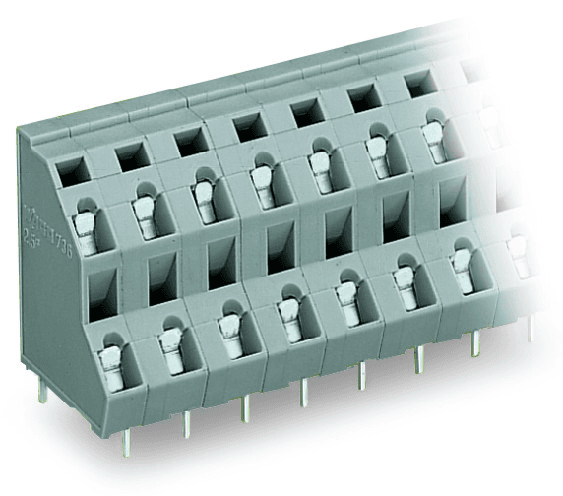

WAGO 736-562 is an automation part designed for printed circuit connectors with a short circuit breaking rating as per IEC/EN standards. It features nominal voltages of 400V (III/3), 630V (III/2), and 1000V (II/2), with rated impulse voltages of 6kV for III/3 and III/2, and rated surge voltage of 6kV for II/2. The part has a rated current of 21A and adheres to overvoltage category III / Pollution degree 2. For UL and CSA standards, it has a rated voltage of 300V and a rated current of 10A for both Use Group B and D. The part includes 24 connection points, with a single connection type utilizing CAGE CLAMP technology and supports conductor sizes from 0.08 to 2.5mm2 / 28 to 12 AWG. It has a two-level design, with a pole number of 24, and is designed for a 45° conductor connection direction to PCB. The physical dimensions include a pin spacing of 7.5mm, width of 88.5mm, height of 30.5mm, and depth of 21mm. It is made from Polyamide (PA66) with a flammability class of UL94 V0, and the contacts are made from Electrolytic Copper with tin plating. The part operates within a temperature range of -60 to +105°C, is RoHS compliant without exemptions, and comes in a box of 21 pieces. The country of origin is Poland, with a GTIN of 4044918910965 and a customs tariff number of 85369010000.
