862-634 WAGO Industrial Automation Components
Part#:862-634
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

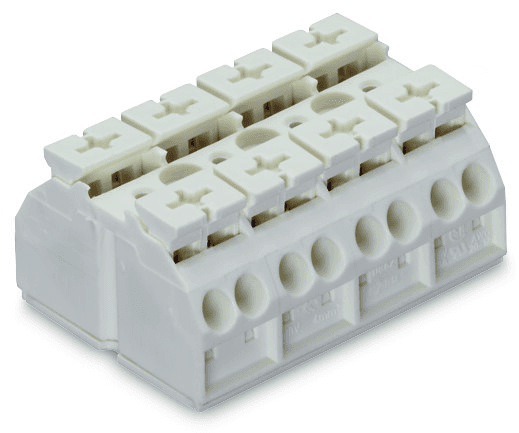

862-634 WAGO - 4-conductor chassis-mount terminal strip; without ground contact; 4-pole; 1 snap-in foot per pole; 4 mm²; 4,00 mm²; white
Product Details
- Weight 27.42600721 g
- Country Of Origin Germany
- HTS Code 85369010000
- Package Type Bag
- Color White
- Strip Length 0.43 inches, 11 millimeters
- Insulation Material Polyamide
- Conductor Material Copper
- Voltage 500 volts
- Flammability Class V0
- Depth 1.378 inches, 35 millimeters
- Actuator Push-button
- Mounting Type Snap-in Foot
- Country of Origin Germany
- Current 32 amperes
- Width 1.89 inches, 48 millimeters
- Conductor Size 12 american wire gauge, 4 millimeters
- Weight 27.426 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 862-634 on Powermatic Associates is $2.28. Order now.
About the product
Wago 862-634 is a feed-through/thru chassis-mount terminal strip designed for efficient wire connection and distribution. It features push-in CAGE CLAMP spring connections for easy installation and maintenance. This terminal strip is rated for a current of 32A according to IEC standards and is designed with a single deck/level and one snap-in foot per pole for stability. It accommodates a net height of 6 kV and has a net width accommodating 4 feed-through poles (4P). The terminal strip is designed to mount on DIN rails or surfaces via an accessory snap-in foot, with dimensions of H22.3mm x W48mm x D35mm. It is suitable for 0.5mm2 to 4mm2 fine stranded or solid conductors and #20AWG to #12AWG fine stranded or solid conductors. The terminal strip is made from polyamide (PA) 66 and halogen-free materials, ensuring durability and safety. It also features 16-wires (8 push-in + 8 push-in) connections and is rated for a control voltage of 500V according to IEC standards.
