862-594 WAGO Industrial Automation Components

Name: 862-594
Brand: WAGO
Price: 2.28 USD
Availability: BackOrder

Part#:862-594

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

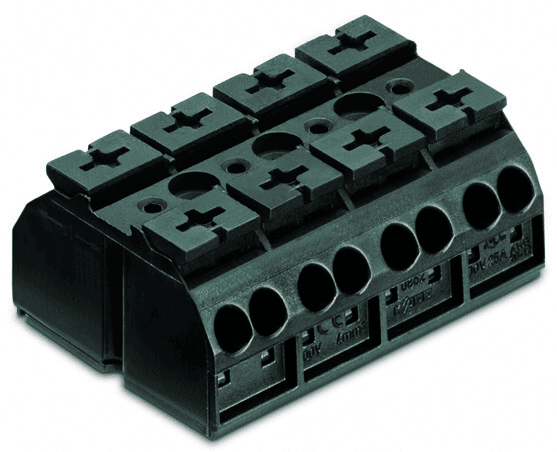

862-594 WAGO - 4-conductor chassis-mount terminal strip; without ground contact; 4-pole; 4 mm²; 4,00 mm²; black

Product Details

Weight
27.3700072 g
Country Of Origin
Germany
HTS Code
85369010000
Actuator
Push-button
Insulation Material
Polyamide
Country of Origin
Germany
Strip Length
0.43 inches, 11 millimeters
Width
1.89 inches, 48 millimeters
Depth
1.378 inches, 35 millimeters
Weight
27.370 grams
Conductor Size
12 american wire gauge, 4 millimeters
Package Type
Bag
Conductor Material
Copper
Mounting Type
Snap-in Foot At Pos. 1+4
Current
32 amperes
Voltage
500 volts
Color
Black
Flammability Class
V0

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 862-594 on Powermatic Associates is $2.28. Order now.

About the product

Wago 862-594 is a feed-through/thru chassis-mount terminal strip designed for efficient connectivity. It features push-in CAGE CLAMP spring connections for secure and easy wiring. This terminal strip is rated for a current of 32A according to IEC standards and is designed as a 1-deck/level unit. It supports a control voltage that allows for mounting on DIN rails or surface mounting via an accessory snap-in foot. The terminal strip is suitable for 0.5mm2 to 4mm2 fine stranded or solid conductors and #20AWG to #12AWG fine stranded or solid conductors. It is constructed from polyamide (PA) 66 and halogen-free materials, ensuring durability and environmental safety. The dimensions are H22.3mm x W48mm x D35mm, accommodating 16 wires (8 push-in + 8 push-in) across 4 feed-through poles (4P). The design is rated for a voltage of 500V (IEC) and has a net height of 6kV, indicating its insulation level.
